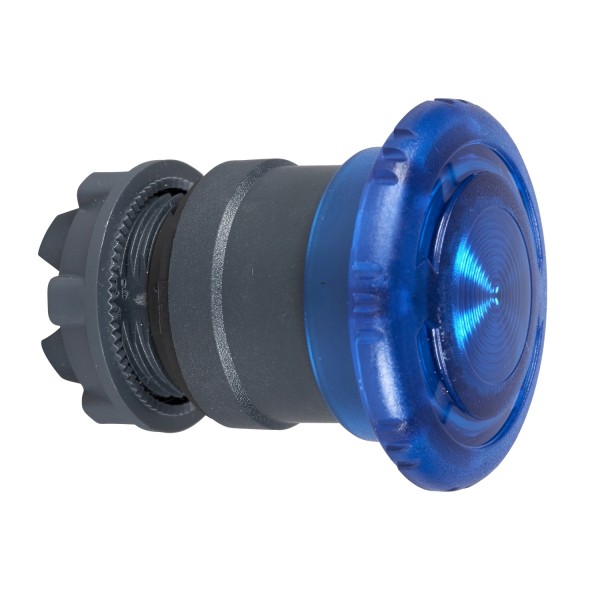

blue Ø40 illum mushroom pushbutton head Ø22 latching for integral LED

Product was successfully added to your shopping cart.

blue Ø40 illum mushroom pushbutton head Ø22 latching for integral LED

Tootekood: ZB5AW763

Quick Overview

Saadavus: Tellimisel

24,06 € (ilma KM-ta)

Qty:

Details

Main
range of product	Harmony XB5
product or component type	Head for illuminated push-button
device short name	ZB5
product compatibility	Integral LED
bezel material	Dark grey plastic
mounting diameter	22 mm
sale per indivisible quantity	1
head type	Standard
shape of signaling unit head	Round
type of operator	latching
reset	Turn to release
operator profile	Blue mushroom Ø 40 mm, unmarked

Complementary
CAD overall width	40 mm
CAD overall height	40 mm
CAD overall depth	50 mm
net weight	0.022 kg
resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
mechanical durability	300000 cycles
main group	Mushroom head
group of product	Mush. turn to release illum
station name	XALD 1 cut-out XALK 1 cut-out
cap/operator or lens colour	Blue
marking	Unmarked
electrical composition code	M6 for <2 contacts using single blocks in front mounting with integral LED and transformer M10 for <2 contacts using single blocks in front mounting with integral LED MF1 for <2 contacts using single blocks in front mounting with integral LED MR1 for <2 contacts using single blocks in rear mounting with integral LED M3 for <4 contacts using single blocks in front mounting with integral LED M4 for <4 contacts using single and double blocks in front mounting with integral LED
device presentation	Basic sub-assemblies

Environment
protective treatment	TC
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-40…70 °C
overvoltage category	Class II conforming to IEC 60536
IP degree of protection	IP66 conforming to IEC 60529 IP69 IP69K
NEMA degree of protection	NEMA 13 NEMA 4X
IK degree of protection	IK05 conforming to EN 50102
standards	JIS C8201-5-1 EN/IEC 60947-5-4 UL 508 GB 14048.5 EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-1 JIS C8201-1
product certifications	UL listed CSA DNV GL LROS (Lloyds register of shipping) RINA BV
vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
