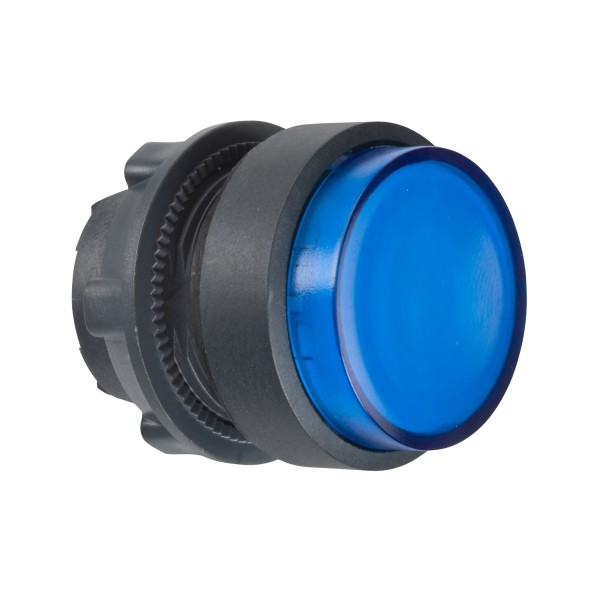

blue projecting illuminated pushbutton head Ø22 spring return for BA9s bulb

Ülevaaded: 0

Tootekood: ZB5AW16

Quick Overview

Saadavus: Ei saa enam tellida

4,79 € (ilma KM-ta)

Details

Main
range of product
Harmony XB5
product or component type
Head for illuminated push-button
device short name
ZB5
product compatibility
BA 9s
bezel material
Dark grey plastic
mounting diameter
22 mm
sale per indivisible quantity
1
head type
Standard
shape of signaling unit head
Round
type of operator
spring return
operator profile
Blue projecting, unmarked
operator additional information
With plain lens
Complementary
CAD overall width
29 mm
CAD overall height
29 mm
CAD overall depth
32 mm
net weight
0,017 kg
resistance to high pressure washer
7000000 Pa 55 °C 0.1 m
mechanical durability
10000000 cycles
main group
Illum push-button
group of product
Projected push BA9s
station name
XALD 1...5 cut-outs
XALK 2...5 cut-outs
cap/operator or lens colour
Blue
marking
Unmarked
electrical composition code
M7 6 single front mounting BA 9s
M8 6 single and double front mounting BA 9s
M9 2 single front mounting BA 9s and transformer
MF2 2 single front mounting BA 9s
device presentation
Basic sub-assemblies
Environment
protective treatment
TC
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…55 °C
overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529
IP69
IP69K
NEMA degree of protection
NEMA 13
NEMA 4X
IK degree of protection
IK05 EN 50102
standards
CSA C22.2 No 14
UL 508
EN/IEC 60947-1
JIS C8201-5-1
GB 14048.5
EN/IEC 60947-5-4
EN/IEC 60947-5-1
JIS C8201-1
product certifications
RINA
DNV
GL
UL listed
LROS (Lloyds register of shipping)
BV
CSA
vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
Contractual warranty
Garantii
18 months
