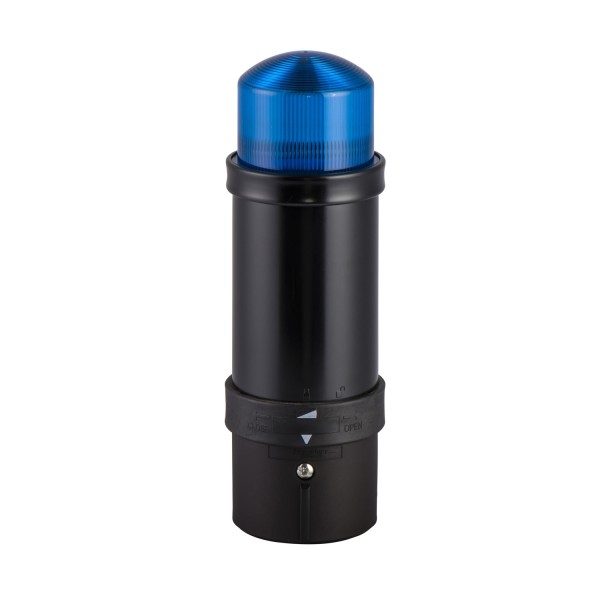

BLUE STROBE BEACON

Ülevaaded: 0

Tootekood: XVBL8M6

Quick Overview

Saadavus: Tellimisel

113,55 € (ilma KM-ta)

Details

Main
range of product
Harmony XVB Universal
product or component type
Complete beacon
beacon or indicator bank unit type
Base unit direct or tube fixing
Illuminated unit
signalling type
Flashing
mounting diameter
70 mm
component name
XVBL
material
Glass reinforced polyamide base unit
Polycarbonate illuminated unit
light source
Integral flash discharge tube, blue
bulb type
Flash discharge tube
[Us] rated supply voltage
230 V AC
Complementary
connections - terminals
Screw clamp terminals, <= 1 x 1.5 mm² with cable end
[Ui] rated insulation voltage
250 V IEC 60947-1
nominal voltage limit
0.85...1.1 Un IEC 60947-5-1
current consumption
< 280 mA AC
[Uimp] rated impulse withstand voltage
4 kV IEC 60947-1
flash energy
10 J
flashing frequency
1 Hz
CAD overall width
70 mm
CAD overall height
232 mm
CAD overall depth
70 mm
terminals description ISO n°1
(GND)GROUND
(COM-1)PW
net weight
0,46 kg
Environment
product certifications
GOST
UL 508
CSA C22-2 No 14
CCC
standards
EN/IEC 60947-5-1
protective treatment
TC
ambient air temperature for storage
-40…70 °C
electrical shock protection class
Class I on support tube IEC 61140
Class II on base unit IEC 61140
IP degree of protection
IP65 on fixing base XVBZ0. IEC 60529
IP66 on base unit IEC 60529
NEMA degree of protection
NEMA 4X UL 508 indoor)
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
