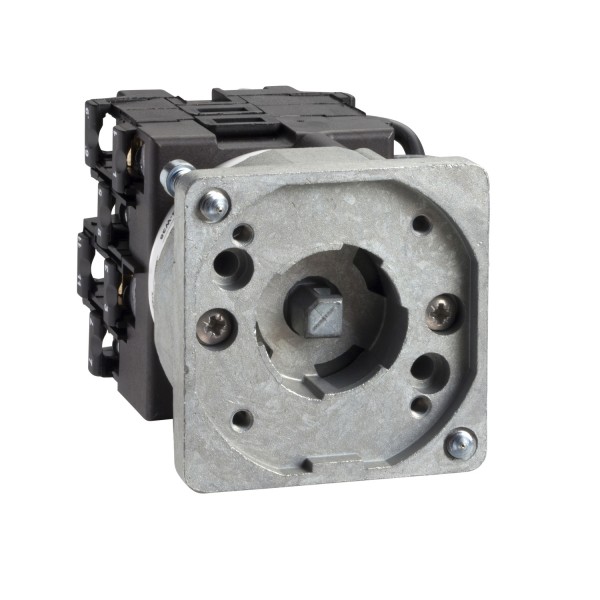

body for 2-speed motor switch - 3-pole - 60° - 12 A - for Ø 22 mm

Tootekood: K1H004PX

Quick Overview

Saadavus: Ei saa enam tellida

31,73 € (ilma KM-ta)

Details

Main
range of product
Harmony K
product or component type
Cam switch body
component name
K1
[Ith] conventional free air thermal current
12 A
sub-assembly composition
Contact blocks + fixing plate
cam switch function
Pole change switches for 2-speed motor
motor type
Tapped Dahlander winding
off position
With Off position
switching positions
Right: 0° - 60° - 120°
product mounting
Front mounting
fixing mode
Ø 22 mm hole
bezel material
Metal
Complementary
switching angle
60 °
[Ui] rated insulation voltage
690 V (pollution degree 3) conforming to IEC 60947-1
[Ithe] conventional enclosed thermal current
10 A
rated operational power in W
10500 W AC-21, 500 - 660 V 3 phases conforming to IEC 947-3
1100 W AC-3, 230 V 3 phases conforming to IEC 947-3
1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3
1500 W AC-3, 400 V 1 phase conforming to IEC 947-3
1500 W AC-3, 400 V 3 phases conforming to IEC 947-3
1500 W AC-3, 500 V 3 phases conforming to IEC 947-3
1500 W AC-3, 690 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3
4800 W AC-21, 230 V 3 phases conforming to IEC 947-3
600 W AC-3, 230 V 1 phase conforming to IEC 947-3
8300 W AC-21, 400 V 3 phases conforming to IEC 947-3
[Ie] rated operational current AC
1 A at 500 V AC-15 conforming to IEC 947-5-1
2 A at 400 V AC-15 conforming to IEC 947-5-1
3 A at 230 V AC-15 conforming to IEC 947-5-1
1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3
2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3
2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3
3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3
3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3
4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3
4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3
5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3
electrical durability
1000000 cycles AC-15
1000000 cycles AC-21
500000 cycles AC-23
500000 cycles AC-3
maximum operating rate
2.5 cyc/mn AC-21
2.5 cyc/mn AC-23
2.5 cyc/mn AC-3
8.333 cyc/mn AC-15
short-circuit current
10000 A
short-circuit protection
16 A cartridge fuse, type gG
[Uimp] rated impulse withstand voltage
4 kV in isolating function
6 kV conforming to IEC 947-1
contact operation
Slow-break
positive opening
With
electrical connection
Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
mechanical durability
1000000 cycles
net weight
0.243 kg
Environment
standards
CENELEC EN 50013
EN 60947-3 for power circuit
EN 60947-5-1 for control circuit
IEC 60947-3 for power circuit
IEC 60947-5-1 for control circuit
product certifications
CSA 240 V 1 hp 1 phase
CSA 240 V 3 hp 3 phases 2 pole(s)
UL 240 V 1 hp 3 phases
UL 240 V 0.33 hp 1 phase 2 pole(s)
protective treatment
TC
ambient air temperature for operation
-25…55 °C
ambient air temperature for storage
-40…70 °C
shock resistance
30 gn conforming to IEC 68-2-27
vibration resistance
5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
electrical shock protection class
Class II conforming to IEC 536
Class II conforming to NF C 20-030
Contractual warranty
Warranty
18 months
