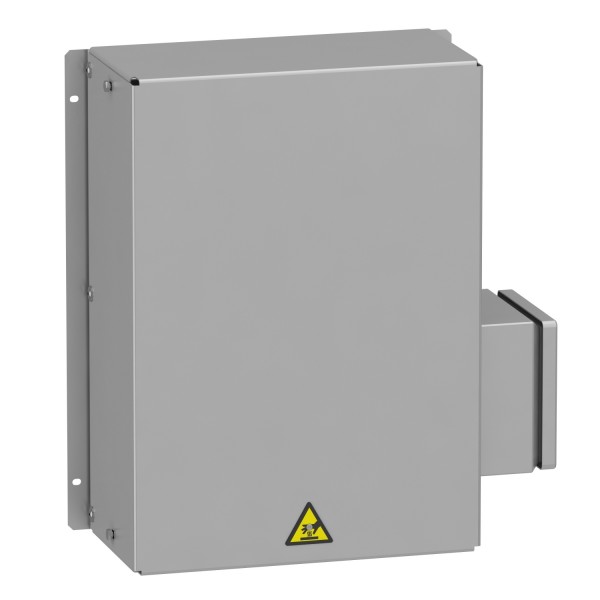

braking resistor - 10 ohms - 3.4 kW - IP20

Product was successfully added to your shopping cart.

braking resistor - 10 ohms - 3.4 kW - IP20

Tootekood: VW3A7744

Quick Overview

Saadavus: Tellimisel

620,63 € (ilma KM-ta)

Qty:

Details

Main
product or component type	Braking resistor

Complementary
range compatibility	Altivar Machine ATV340 Altivar Process ATV900
product compatibility	Variable speed drive ATV930 wall mount 37 kW 380...480 V medium cycle Variable speed drive ATV930 wall mount 45 kW 380...480 V medium cycle Variable speed drive ATV950 wall mount 37 kW 380...480 V medium cycle Variable speed drive ATV950 wall mount 45 kW 380...480 V medium cycle Variable speed drive ATV930 wall mount 11 kW 200...240 V severe cycle Variable speed drive ATV340 30 kW 380...480 V medium cycle Variable speed drive ATV340 37 kW 380...480 V medium cycle
braking cycle	Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
average power available	3.4 kW at 50 °C
ohmic value	10 Ohm
electrical connection	terminal, connection capacity: <= 35 mm² / AWG 3 for drive terminal, connection capacity: <= 4 mm² / AWG 10 for temperature control switch
protection type	Thermal protection via drive or temperature control switch at 120 °C
[Ue] rated operational voltage	24 V DC 250 V AC
width	390 mm
height	640 mm
depth	180 mm
net weight	9 kg

Environment
ambient air temperature for operation	0…50 °C
ambient air temperature for storage	-25…70 °C
IP degree of protection	IP20

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
