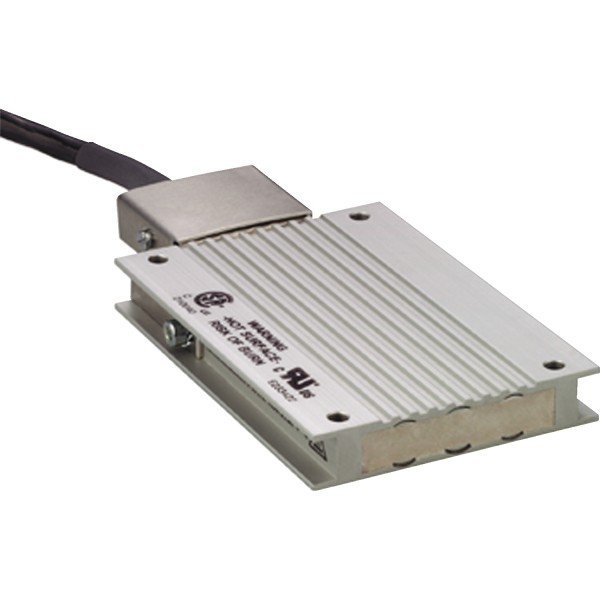

braking resistor - 100 Ohm - 100 W - cable 3 m - IP65

Product was successfully added to your shopping cart.

braking resistor - 100 Ohm - 100 W - cable 3 m - IP65

Tootekood: VW3A7608R30

Quick Overview

Saadavus: Tellimisel

309,53 € (ilma KM-ta)

Qty:

Details

Main
range of product	Lexium Altivar
product or component type	Braking resistor
range compatibility	Lexium 52 Lexium 15 Altivar Machine ATV320 Lexium 32i Lexium 32 Altivar 32 Easy Altivar 310L Easy Lexium 16
product compatibility	ATV32H018M2 ATV32H037M2 ATV32H037N4 ATV32H055M2 ATV32H055N4 ATV32H075M2 ATV32H075N4 ATV32HU11N4 ATV32HU15N4 ATV32HU22N4 Variable speed drive ATV320 at 0.18 kW, 200...240 V, single phase Variable speed drive ATV320 at 0.37 kW, 200...240 V, single phase Variable speed drive ATV320 at 0.55 kW, 200...240 V, single phase Variable speed drive ATV320 at 0.75 kW, 200...240 V, single phase Variable speed drive ATV320 at 0.37 kW, 380...500 V, three phase Variable speed drive ATV320 at 0.55 kW, 380...500 V, three phase Variable speed drive ATV320 at 0.75 kW, 380...500 V, three phase Variable speed drive ATV320 at 1.1 kW, 380...500 V, three phase Variable speed drive ATV320 at 1.5 kW, 380...500 V, three phase Variable speed drive ATV320 at 2.2 kW, 380...500 V, three phase Variable speed drive ATV320 at 0.75 kW, 525...600 V, three phase Variable speed drive ATV320 at 1.5 kW, 525...600 V, three phase Variable speed drive ATV320 at 2.2 kW, 525...600 V, three phase Variable speed drive ATV310L at 0.75 kW Variable speed drive ATV310L at 1.5 kW Variable speed drive ATV310L at 2.2 kW Variable speed drive ATV310L at 3.0 kW Variable speed drive ATV310L at 4.0 kW Variable speed drive ATV310L at 5.5 kW Motion servo drive LXM16D at 0.1 kW, 200...230 V, single phase Motion servo drive LXM16D at 0.2 kW, 200...230 V, single phase Motion servo drive LXM16D at 0.4 kW, 200...230 V, single phase Motion servo drive LXM16D at 0.75 kW, 200...230 V, single phase Motion servo drive LXM16D at 1 kW, 200...230 V, single phase Motion servo drive LXM16D at 1.5 kW, 200...230 V, single phase
ohmic value	100 Ohm
continuous power	100 W
average power available	25 W at 50 °C
cable length	3 m

Complementary
energy peak	2700 J at 480 V 3000 J at 400 V 4500 J at 230 V 4400 J at 115 V
protection type	Thermal protection via the servo drive
net weight	0.76 kg

Environment
ambient air temperature for operation	0…50 °C
ambient air temperature for storage	-25…85 °C
IP degree of protection	IP65
IP degree of protection	IP65

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration

Contractual warranty
Warranty	18 months
