braking resistor - 100 ohms - 0.1 kW - IP20

Product was successfully added to your shopping cart.

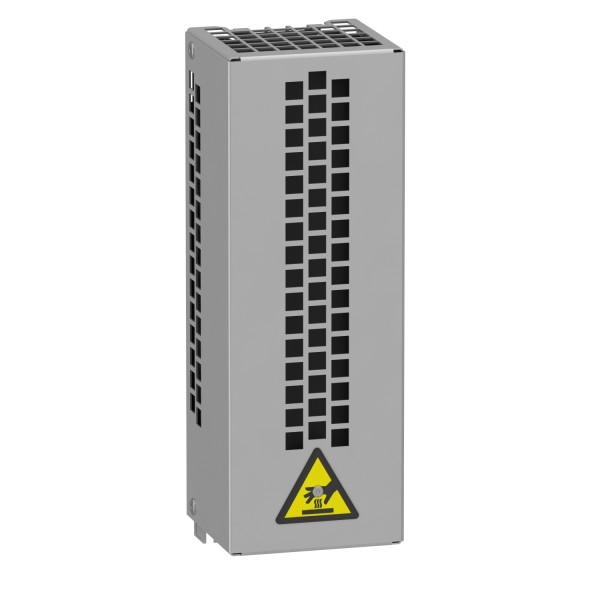

braking resistor - 100 ohms - 0.1 kW - IP20

Tootekood: VW3A7730

Quick Overview

Saadavus: Tellimisel

87,36 € (ilma KM-ta)

Qty:

Details

Main
product or component type	Braking resistor

Complementary
range compatibility	Altivar Process ATV900 Altivar Machine ATV340 Altivar Machine ATV320 Easy Altivar 310 Easy Altivar 310L
product compatibility	Variable speed drive ATV930 wall mount 0.75 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 1.5 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 2.2 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 3 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 4 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 0.75 kW 200...240 V light cycle Variable speed drive ATV950 wall mount 0.75 kW 380...480 V light cycle Variable speed drive ATV950 wall mount 1.5 kW 380...480 V light cycle Variable speed drive ATV950 wall mount 2.2 kW 380...480 V light cycle Variable speed drive ATV950 wall mount 3 kW 380...480 V light cycle Variable speed drive ATV950 wall mount 4 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 0.75 kW 380...480 V medium cycle Variable speed drive ATV930 wall mount 1.5 kW 380...480 V medium cycle Variable speed drive ATV930 wall mount 0.75 kW 200...240 V medium cycle Variable speed drive ATV950 wall mount 0.75 kW 380...480 V medium cycle Variable speed drive ATV950 wall mount 1.5 kW 380...480 V medium cycle Variable speed drive ATV340 0.75 kW 380...480 V light cycle Variable speed drive ATV340 1.5 kW 380...480 V light cycle Variable speed drive ATV340 2.2 kW 380...480 V light cycle Variable speed drive ATV340 3 kW 380...480 V light cycle Variable speed drive ATV340 0.75 kW 380...480 V medium cycle Variable speed drive ATV320 0.18 kW 200...240 V Variable speed drive ATV320 0.37 kW 200...240 V Variable speed drive ATV320 0.37 kW 380...480 V Variable speed drive ATV320 0.55 kW 380...480 V Variable speed drive ATV320 0.75 kW 380...480 V Variable speed drive ATV320 1.1 kW 380...480 V Variable speed drive ATV320 1.5 kW 380...480 V Variable speed drive ATV320 2.2 kW 380...480 V Variable speed drive ATV320 3 kW 380...480 V Variable speed drive ATV310 1.5 kW Variable speed drive ATV310 2.2 kW Variable speed drive ATV310 3 kW Variable speed drive ATV310 4 kW Variable speed drive ATV930 2.2 kW 500...690 V light cycle Variable speed drive ATV930 3 kW 500...690 V light cycle Variable speed drive ATV930 4 kW 500...690 V light cycle Variable speed drive ATV930 5.5 kW 500...690 V light cycle Variable speed drive ATV930 3 hp 600 V light cycle Variable speed drive ATV930 5 hp 600 V light cycle Variable speed drive ATV930 7.5 hp 600 V light cycle Variable speed drive ATV930 2.2 kW 500...690 V medium cycle Variable speed drive ATV930 3 kW 500...690 V medium cycle Variable speed drive ATV930 3 hp 600 V medium cycle Variable speed drive ATV320 0.75 kW 525...600 V Variable speed drive ATV320 1.5 kW 525...600 V Variable speed drive ATV320 2.2 kW 525...600 V Variable speed drive ATV320 4 kW 525...600 V Variable speed drive ATV310L 0.75 kW Variable speed drive ATV310L 1.5 kW Variable speed drive ATV310L 2.2 kW Variable speed drive ATV310L 3.0 kW Variable speed drive ATV310L 4.0 kW Variable speed drive ATV310L 5.5 kW
braking cycle	Light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle Light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
average power available	0.1 kW at 50 °C
ohmic value	100 Ohm
electrical connection	terminal, connection capacity: <= 10 mm² / AWG 8 for drive
protection type	Thermal protection via drive
width	105 mm
height	295 mm
depth	100 mm
net weight	1.5 kg

Environment
ambient air temperature for operation	0…50 °C
ambient air temperature for storage	-25…70 °C
IP degree of protection	IP20

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
