braking resistor - 2.5 ohms - 3.2 kW - IP23

Product was successfully added to your shopping cart.

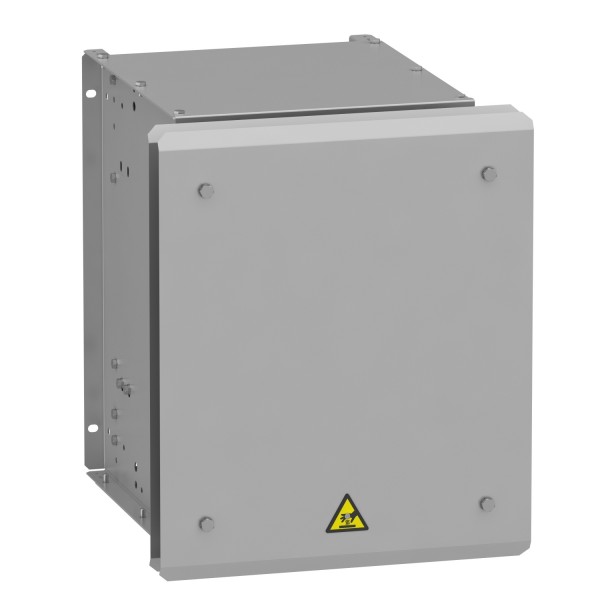

braking resistor - 2.5 ohms - 3.2 kW - IP23

Tootekood: VW3A7737

Quick Overview

Saadavus: Tellimisel

1 407,94 € (ilma KM-ta)

Qty:

Details

Main
product or component type	Braking resistor

Complementary
range compatibility	Altivar Process ATV900
product compatibility	Variable speed drive ATV930 wall mount 110 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 132 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 160 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 30 kW 200...240 V light cycle Variable speed drive ATV930 wall mount 37 kW 200...240 V light cycle Variable speed drive ATV930 wall mount 45 kW 200...240 V light cycle Variable speed drive ATV930 wall mount 30 kW 200...240 V medium cycle Variable speed drive ATV930 wall mount 37 kW 200...240 V medium cycle Variable speed drive ATV930 wall mount 45 kW 200...240 V medium cycle Variable speed drive ATV930 wall mount 310 kW 380...480 V light cycle 2 per drive
braking cycle	Light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle Light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
average power available	3.2 kW at 50 °C
ohmic value	2.5 Ohm
electrical connection	terminal, connection capacity: <= 2.5 mm² / AWG 12 for temperature control switch M12 bar wire for drive
protection type	Thermal protection via drive or temperature control switch at 120 °C
[Ue] rated operational voltage	24 V DC 250 V AC
width	540 mm
height	485 mm
depth	450 mm
net weight	21 kg

Environment
ambient air temperature for operation	0…50 °C
ambient air temperature for storage	-25…70 °C
IP degree of protection	IP23

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
