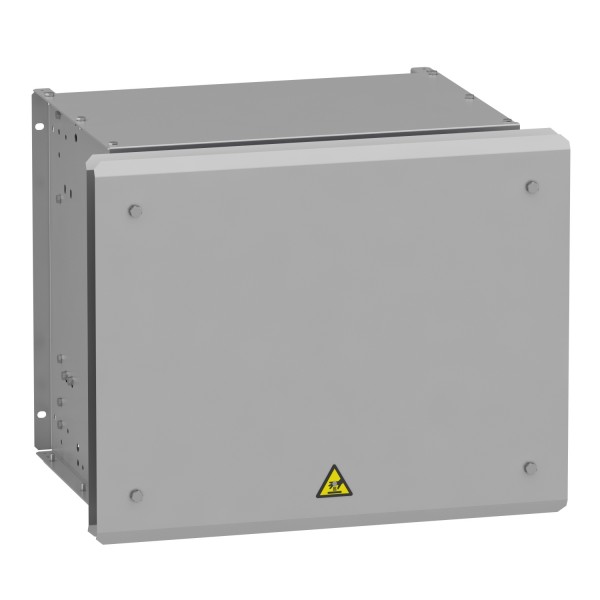

braking resistor - 28 ohms - 5.1 kW - IP23

Product was successfully added to your shopping cart.

braking resistor - 28 ohms - 5.1 kW - IP23

Tootekood: VW3A7752

Quick Overview

Saadavus: Tellimisel

760,38 € (ilma KM-ta)

Qty:

Details

Main
product or component type	Braking resistor

Complementary
range compatibility	Altivar Process ATV900 Altivar Machine ATV340
product compatibility	Variable speed drive ATV930 wall mount 11 kW 380...480 V severe cycle Variable speed drive ATV930 wall mount 15 kW 380...480 V severe cycle Variable speed drive ATV930 wall mount 4 kW 200...240 V severe cycle Variable speed drive ATV950 wall mount 11 kW 380...480 V severe cycle Variable speed drive ATV950 wall mount 15 kW 380...480 V severe cycle Variable speed drive ATV340 7.5 kW 380...480 V severe cycle Variable speed drive ATV340 11 kW 380...480 V severe cycle Variable speed drive ATV930 15 kW 500...690 V severe cycle Variable speed drive ATV930 18.5 kW 500...690 V severe cycle Variable speed drive ATV930 20 hp 600 V severe cycle Variable speed drive ATV930 25 hp 600 V severe cycle
braking cycle	Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
average power available	5.1 kW at 50 °C
ohmic value	28 Ohm
electrical connection	terminal, connection capacity: <= 2.5 mm² / AWG 12 for temperature control switch M6 bar wire for drive
protection type	Thermal protection via drive or temperature control switch at 120 °C
[Ue] rated operational voltage	24 V DC 250 V AC
width	540 mm
height	485 mm
depth	650 mm
net weight	27 kg

Environment
ambient air temperature for operation	0…50 °C
ambient air temperature for storage	-25…70 °C
IP degree of protection	IP23

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
