braking resistor - 60 ohms - 0.5 kW - IP20

Product was successfully added to your shopping cart.

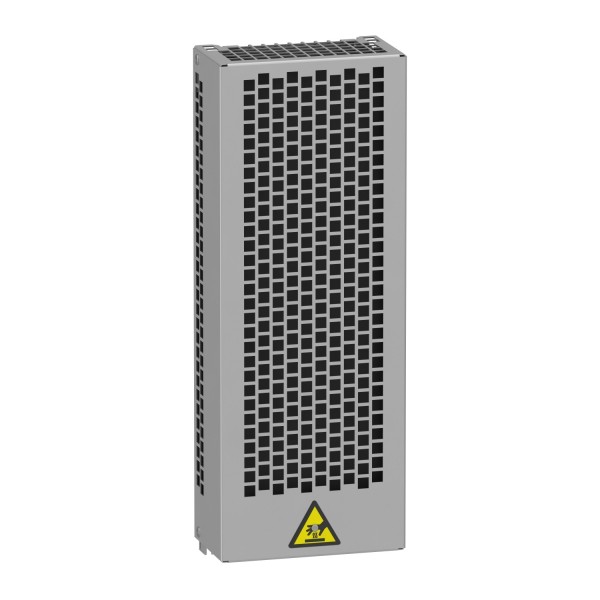

braking resistor - 60 ohms - 0.5 kW - IP20

Tootekood: VW3A7741

Quick Overview

Saadavus: Tellimisel

281,35 € (ilma KM-ta)

Qty:

Details

Main
product or component type	Braking resistor

Complementary
range compatibility	Altivar Process ATV900 Altivar Machine ATV340
product compatibility	Variable speed drive ATV930 wall mount 5.5 kW 380...480 V medium cycle Variable speed drive ATV930 wall mount 7.5 kW 380...480 V medium cycle Variable speed drive ATV950 wall mount 5.5 kW 380...480 V medium cycle Variable speed drive ATV950 wall mount 7.5 kW 380...480 V medium cycle Variable speed drive ATV930 wall mount 1.5 kW 200...240 V severe cycle Variable speed drive ATV340 4 kW 380...480 V medium cycle Variable speed drive ATV340 5.5 kW 380...480 V medium cycle Variable speed drive ATV930 7.5 kW 500...690 V medium cycle Variable speed drive ATV930 11 kW 500...690 V medium cycle Variable speed drive ATV930 10 hp 600 V medium cycle Variable speed drive ATV930 15 hp 600 V medium cycle
braking cycle	Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
average power available	0.5 kW at 50 °C
ohmic value	60 Ohm
electrical connection	terminal, connection capacity: <= 10 mm² / AWG 8 for drive
protection type	Thermal protection via drive
width	175 mm
height	465 mm
depth	100 mm
net weight	3.8 kg

Environment
ambient air temperature for operation	0…50 °C
ambient air temperature for storage	-25…70 °C
IP degree of protection	IP20

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
