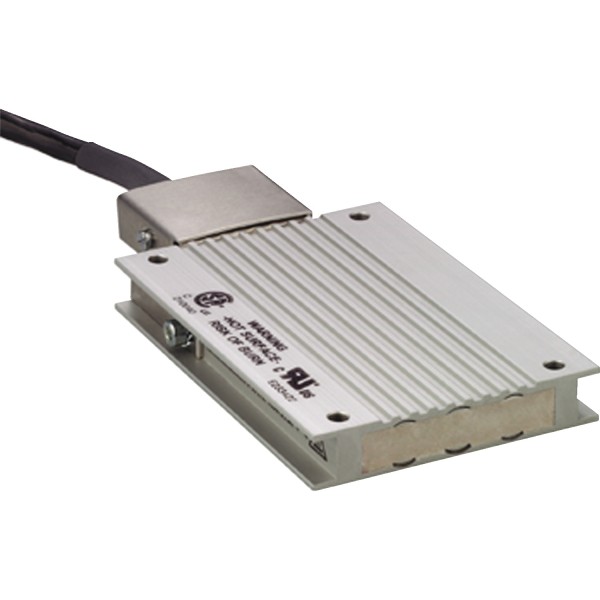

braking resistor - 72 ohm - 100 W - cable 3 m - IP65

Product was successfully added to your shopping cart.

braking resistor - 72 ohm - 100 W - cable 3 m - IP65

Tootekood: VW3A7605R30

Quick Overview

Saadavus: Tellimisel

248,48 € (ilma KM-ta)

Qty:

Details

Main
range of product	Lexium Altivar
product or component type	Braking resistor
range compatibility	Lexium 32i Lexium 32 Lexium 05 Lexium 15 Lexium 52 Altivar Machine ATV320 Altivar 32 Easy Lexium 16
product compatibility	ATV32HU11M2 ATV32HU15M2 Variable speed drive ATV320 1,1 kW, 200...240 V, single phase Variable speed drive ATV320 1,5 kW, 200...240 V, single phase Motion servo drive LXM16D 0,1 kW, 200...230 V, single phase Motion servo drive LXM16D 0,2 kW, 200...230 V, single phase Motion servo drive LXM16D 0,4 kW, 200...230 V, single phase Motion servo drive LXM16D 0,75 kW, 200...230 V, single phase Motion servo drive LXM16D 1 kW, 200...230 V, single phase Motion servo drive LXM16D 1,5 kW, 200...230 V, single phase
ohmic value	72 Ohm
continuous power	100 W
average power available	25 W 50 °C
cable length	3 m

Complementary
energy peak	2300 J 480 V 2500 J 400 V 3700 J 230 V 5500 J 115 V
protection type	Thermal protection via the servo drive
net weight	0,85 kg

Environment
ambient air temperature for operation	0…50 °C
ambient air temperature for storage	-25…85 °C
IP degree of protection	IP65
IP degree of protection	IP65

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
