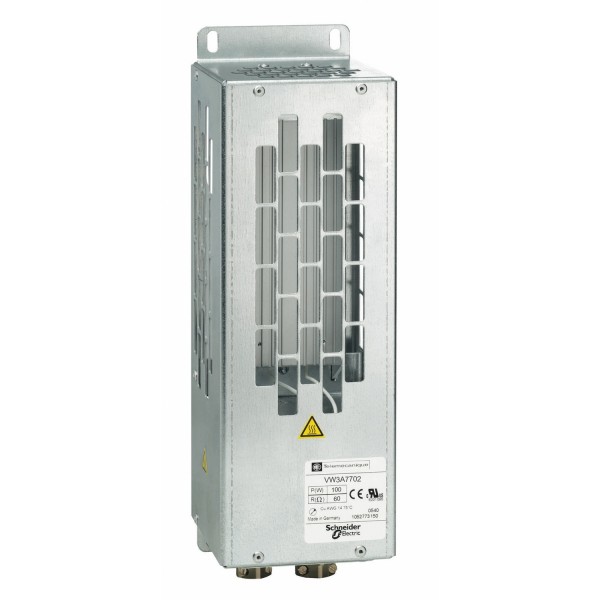

braking resistor - IP 20 - 60 Ohm - 100 W

Ülevaaded: 0

Tootekood: VW3A7702

Quick Overview

Saadavus: Tellimisel

113,93 € (ilma KM-ta)

Details

Main
range of product
Altivar
product or component type
Braking resistor ATV61
Braking resistor ATV71
range compatibility
Altivar 31C
Altivar 312 Solar
Altivar 32
Altivar 12
Altivar 71
Altivar Easy 310
Altivar 61
Altivar 312
product compatibility
ATV31CU22M2
ATV12HU22M2
ATV12HU22M3
ATV12PU22M3
ATV312HU22M2
ATV312HU22M3
ATV312HU30M3
ATV312HU55N4
ATV312HU55S6
ATV312HU75N4
ATV312HU75S6
ATV31CU55N4
ATV31CU75N4
ATV32HU22M2
ATV32HU55N4
ATV32HU75N4
ATV61HD11Y
ATV61HD15Y
ATV61HU15M3
ATV61HU22M3
ATV61HU22S6X
ATV61HU30S6X
ATV61HU40S6X
ATV61HU55N4
ATV61HU55S6X
ATV61HU75N4
ATV61HU75S6X
ATV61WD11N4
ATV61WD11N4C
ATV61WU75N4
ATV61WU75N4C
ATV71HD11Y
ATV71HU15M3
ATV71HU15S6X
ATV71HU22M3
ATV71HU22S6X
ATV71HU30S6X
ATV71HU40S6X
ATV71HU55N4
ATV71HU55S6X
ATV71HU75N4
ATV71HU75S6X
ATV71HU75Y
ATV71PU55N4Z
ATV71PU75N4Z
ATV71WU55N4
ATV71WU75N4
Variable speed drive ATV310 5,5 kW
Variable speed drive ATV310 7,5 kW
average power available
100 W 50 °C
115 W 40 °C
ohmic value
60 Ohm
Complementary
electrical connection
terminal <= 1.5 mm² / AWG 16 temperature control switch
terminal <= 4 mm² / AWG 28 drive
protection type
Thermal protection via drive or temperature control switch 120 °C
[Ue] rated operational voltage
24 V DC 0,1 A
250 V AC 1 A
temperature controlled switch contact resistance
60 µOhm
net weight
2,4 kg
Environment
ambient air temperature for operation
0…50 °C
ambient air temperature for storage
-25…70 °C
IP degree of protection
IP20
Offer Sustainability
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Contractual warranty
Garantii
18 months
