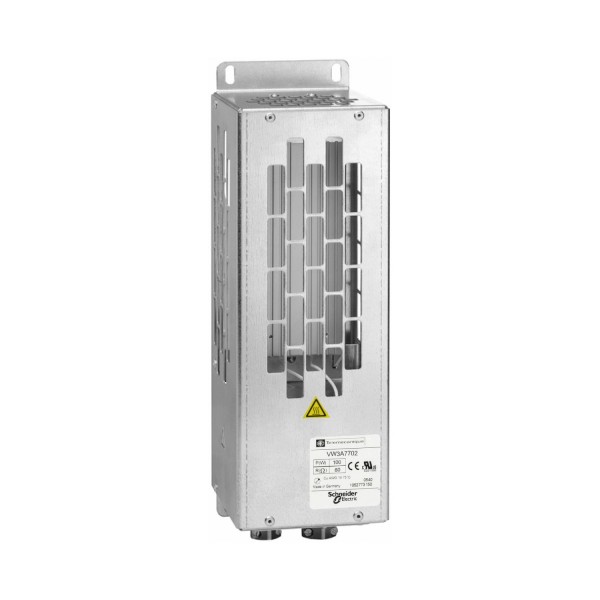

braking resistor - IP 20 - 8 Ohm - 1000 W

Tootekood: VW3A7706

Quick Overview

Saadavus: Ei saa enam tellida

314,76 € (ilma KM-ta)

Main
range of product	Altivar
product or component type	Braking resistor ATV61 Braking resistor ATV71
range compatibility	Altivar 61 Altivar 71
product compatibility	ATV61HD15M3X ATV61WD55N4 ATV61WD55N4C ATV61WD75N4 ATV61WD75N4C ATV61WD90N4 ATV61WD90N4C ATV71HD15M3X
average power available	1 kW 50 °C
ohmic value	8 Ohm

Complementary
electrical connection	M6 bar wire drive terminal <= 2.5 mm² / AWG 14 temperature control switch
protection type	Thermal protection via drive or temperature control switch 120 °C
[Ue] rated operational voltage	24 V DC 0,1 A 250 V AC 1 A
temperature controlled switch contact resistance	60 µOhm
net weight	11 kg

Environment
ambient air temperature for operation	0…50 °C
ambient air temperature for storage	-25…70 °C
IP degree of protection	IP20

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon

Contractual warranty
Garantii	18 months
