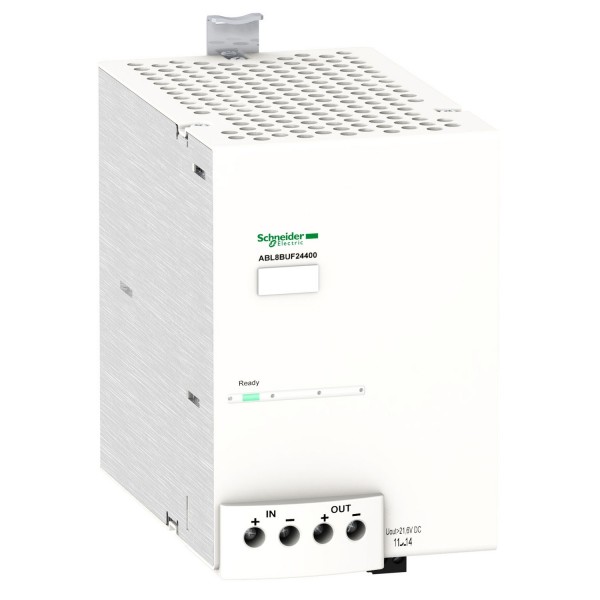

buffer module - 24..28.8 V DC - 40 A - for power supply

Ülevaaded: 0

Tootekood: ABL8BUF24400

Quick Overview

Saadavus: Tellimisel

216,51 € (ilma KM-ta)

Details

Main
range of product
Phaseo
product or component type
Buffer module
input voltage
24...28.8 V DC
output voltage
(Uin-0.25) V nominal mode DC
(Uin-1) V buffer mode DC
maximum output current
40 A
holding time
0.1 s 40 A
6 s 0.5 A
Complementary
input voltage limits
22...30 V
maximum power dissipation in W
15 W
activation threshold
(Uin-1) V and 22 V min
charging time
25 h
number of output channels
1
current consumption
0.6 A on load
0.1 mA no load
<= 40.6 A
output protection type
Against overload > 45 A
Against short-circuits power-supplied mode, automatic reset
Against undervoltage tripping if U < 19 V
connections - terminals
Input connection screw type terminals 2 x 0.5...2 x 10 mm² AWG 20...AWG 8
Output connection screw type terminals 2 x 0.5...2 x 10 mm² AWG 20...AWG 8
Diagnostic relay removable screw terminal block 1 x 2.5 mm² AWG 14
fixing mode
By clips 35 mm symmetrical DIN rail horizontal
By clips 35 mm symmetrical DIN rail vertical
output coupling
Parallel
operating altitude
2000 m
marking
CE
name of test
Electrostatic discharges EN/IEC 61000-4-2
Emission EN 61000-6-3
Induced electromagnetic field EN/IEC 61000-4-6 level 3
Radiated electromagnetic field EN/IEC 61000-4-3 level 3
Rapid transient IEC 61000-4-4 level 3
Surge EN/IEC 61000-4-5 level 2
Conducted/radiated emissions EN 55022 class B, 20 %
local signalling
Buffer ready 1 LED green)
Buffer ready 1 relay
net weight
1,2 kg
Environment
product certifications
RCM
EAC
standards
UL 508
CSA C22.2 No 60950-1
ambient air temperature for operation
-25…60 °C
ambient air temperature for storage
-40…85 °C
environmental characteristic
EMC EN 61000-6-3
EMC EN/IEC 61000-6-2
Safety EN/IEC 60950-1
Safety EN/IEC 61204-3
IP degree of protection
IP20 EN/IEC 60529
dielectric strength
500 V between input and ground
500 V between output and ground
overvoltage category
Class II VDE 0106-1
relative humidity
0…90 % during operation
0…95 % during storage
MTBF reliability
24 V with UTE C80-810
vibration resistance
2 gn 11,9…150 Hz)EN/IEC 61131-2
3.5 mm 3…11,9 Hz)EN/IEC 61131-2
Offer Sustainability
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Contractual warranty
Garantii
18 months
