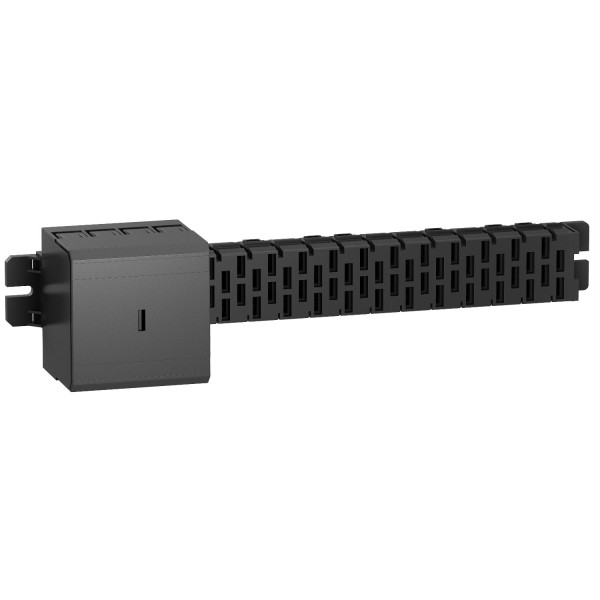

BUSBAR TETRA 160A LG 452

Ülevaaded: 0

Tootekood: AK5JB144

Quick Overview

Saadavus: Tellimisel

58,67 € (ilma KM-ta)

Details

Main
range
Linergy
product name
HK
product or component type
Busbar
device application
Distribution
Tap-offs (18 mm)
18
bar length
452 mm
enclosure/cubicle width
800 mm
network type
AC
[Ie] rated operational current
160 A 35 °C
[Ue] rated operational voltage
400 V off-load plugging-in and unplugging, with supply switched on)IEC 60439-1
480 V off-load plugging-in and unplugging, with supply switched on)CSA
480 V off-load plugging-in and unplugging, with supply switched on)UL
600 V plugging-in and unplugging, with supply switched off)CSA
600 V plugging-in and unplugging, with supply switched off)UL
690 V plugging-in and unplugging, with supply switched off)IEC 60439-1
number of conductors
4
Complementary
bar width
40 mm
width
80 mm
depth
84 mm
network frequency
50/60 Hz
[Ui] rated insulation voltage
600 V CSA
600 V UL
690 V IEC 60439-1
peak current
25 kA
I²t on activation
10000000 A².s
protection type
AM fuses In = 160 A, Isc = 100 kA, Ie = 160 A
GF fuses In = 160 A, Isc = 100 kA, Ie = 160 A
NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A
NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A
connections - terminals
Connector 2,5…70 mm² flexible with cable end
Connector 2,5…70 mm² rigid
tightening torque
10 N.m
mounting position
Vertical using side stop AK5BT01 on mounting plates AK5PA
Horizontal
flame retardance
V0 UL 94
net weight
0,9 kg
Environment
standards
IEC 60439
product certifications
UL
CSA
DNV
LROS (Lloyds register of shipping)
IP degree of protection
IPxx B IEC 60529
fire resistance
850 °C IEC 60695
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
ELi RoHS direktiiv
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
