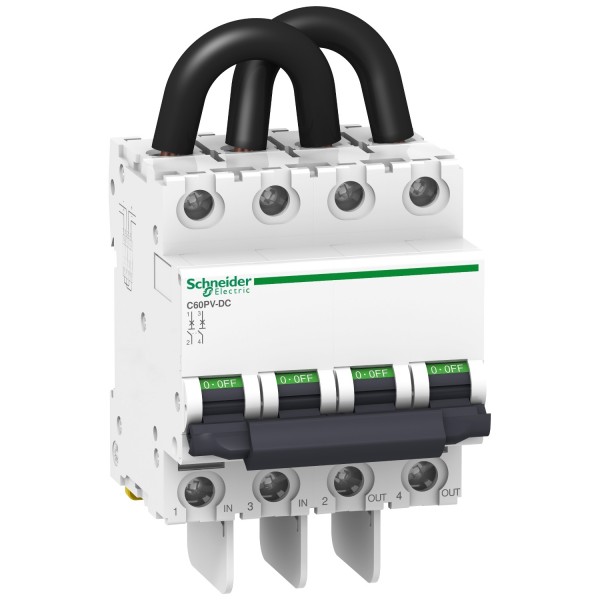

C60PV-DC - 2P - 20A - 800 V

Details

Main
range of product	C60
product or component type	Miniature circuit-breaker
device short name	C60PV-DC
poles description	2P
number of protected poles	2
network type	DC
curve code	B
utilisation category	Category A conforming to EN/IEC 60947-2
suitability for isolation	Yes conforming to EN/IEC 60947-2

Complementary
[In] rated current	20 A
Voltage Drop	588 mV 29.4 mOhm 11.8 W 20 A
[Ue] rated operational voltage	800 V DC
magnetic tripping limit	5.5 x In
breaking capacity	3 kA Icu at 650 V DC 1.5 kA Icu at 800 V DC
[Ics] rated service breaking capacity	1.5 kA 100 % - 800 V DC 3 kA 100 % - 650 V DC
[Ui] rated insulation voltage	1000 V DC
[Uimp] rated impulse withstand voltage	6 kV
contact position indicator	Yes
control type	Toggle
mounting mode	Fixed
mounting support	35 mm symmetrical DIN rail
9 mm pitches	8
height	132.7 mm
width	72 mm
depth	77.4 mm
net weight	0.545 kg
colour	White
mechanical durability	20000 cycles
electrical durability	1500 cycles L/R = 2 ms
locking options description	Padlocking in OFF position
connections - terminals	Tunnel terminal (downside) 1…25 mm² rigid Tunnel terminal (downside) 1…16 mm² flexible Pre-wired cable (upside)
wire stripping length	14 mm
tightening torque	2.5 N.m
compatibility code	C60PV-DC

Environment
standards	EN/IEC 60947-2
pollution degree	2
relative humidity	95 % at 55 °C
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
