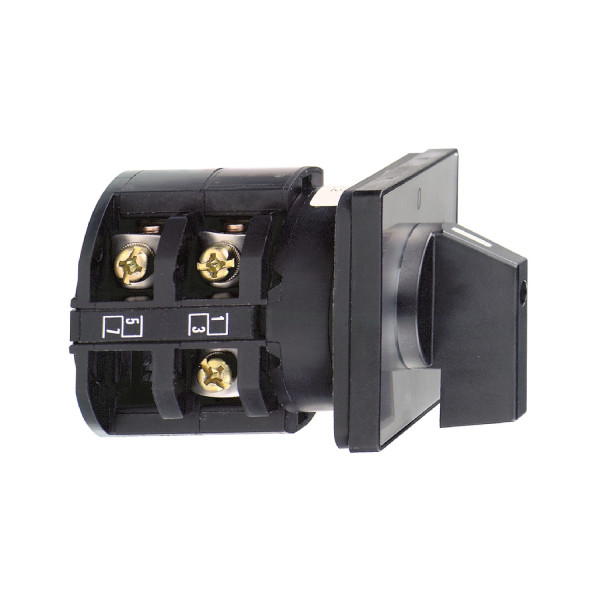

cam changeover switch - 2-pole - 60° - 32 A - screw mounting

Harmony K

Complete cam switch

K30

32 A

Front

4 holes

With front plate 64 x 64 mm

Black handle

Without

With metallic, 1 - 0 - 2 black

Changeover switch

Without

With Off position

2P

Right: 0° - 60°
Left: 0° - 300°

IP40 IEC 529
IP40 NF C 20-010

60 °

690 V 3)EN 60947-1
690 V 3)IEC 60947-1

5000 A

50 A cartridge fuse gG

6 kV EN 947-1
6 kV IEC 947-1

Slow-break

With

Captive screw clamp terminals flexible 2 x 4 mm²
Captive screw clamp terminals solid 2 x 6 mm²

1,2 N.m

11000 mA DC 120 V 2 inductive 50 ms)
11000 mA DC 180 V 3 inductive 50 ms)
11000 mA DC 60 V 1 inductive 50 ms)
1200 mA DC 220 V 1 resistive 1 ms)
1200 mA DC 440 V 2 resistive 1 ms)
1200 mA DC 660 V 3 resistive 1 ms)
16000 mA DC 140 V 3 inductive 50 ms)
16000 mA DC 48 V 1 inductive 50 ms)
16000 mA DC 95 V 2 inductive 50 ms)
23000 mA DC 120 V 2 resistive 1 ms)
23000 mA DC 180 V 3 resistive 1 ms)
23000 mA DC 60 V 1 resistive 1 ms)
25000 mA DC 30 V 1 inductive 50 ms)
25000 mA DC 60 V 2 inductive 50 ms)
25000 mA DC 90 V 3 inductive 50 ms)
3200 mA DC 110 V 1 inductive 50 ms)
3200 mA DC 220 V 2 inductive 50 ms)
3200 mA DC 330 V 3 inductive 50 ms)
32000 mA DC 140 V 3 resistive 1 ms)
32000 mA DC 24 V 1 inductive 50 ms)
32000 mA DC 24 V 1 resistive 1 ms)
32000 mA DC 48 V 1 resistive 1 ms)
32000 mA DC 48 V 2 inductive 50 ms)
32000 mA DC 48 V 2 resistive 1 ms)
32000 mA DC 70 V 3 inductive 50 ms)
32000 mA DC 70 V 3 resistive 1 ms)
32000 mA DC 95 V 2 resistive 1 ms)
400 mA DC 440 V 1 resistive 1 ms)
400 mA DC 660 V 2 resistive 1 ms)
6500 mA DC 110 V 1 resistive 1 ms)
6500 mA DC 220 V 2 resistive 1 ms)
6500 mA DC 330 V 3 resistive 1 ms)

300000 cycles

64 mm

64 mm

93 mm

0,25 kg

EN/IEC 60947-3

CULus 120 V 2 hp 1 phase
CULus 240 V 5 hp 1 phase
CULus 240 V 5 hp 3 phases
CULus 480 V 20 hp 3 phases

TC

-25…55 °C

-40…70 °C

Class II IEC 60536
Class II NF C 20-030

Jah

Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon

Jah

Jah

Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

18 months
