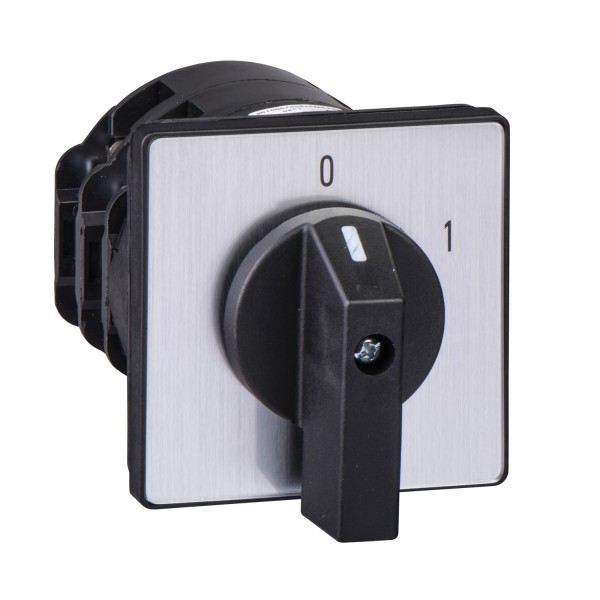

cam changeover switch - 3-pole - 60° - 115 A - screw mounting

Ülevaaded: 0

Tootekood: K115E003WP

Quick Overview

Saadavus: Ei saa enam tellida

157,48 € (ilma KM-ta)

Details

Main
range of product
Harmony K
product or component type
Complete cam switch
component name
K115
[Ith] conventional free air thermal current
115 A
product mounting
Front mounting
fixing mode
4 holes
cam switch head type
With front plate 88 x 88 mm
type of operator
Black handle
rotary handle padlocking
Without
presentation of legend
With metallic, 1 - 0 - 2 black
cam switch function
Reversing switch
return
Without
off position
With Off position
poles description
3P
switching positions
Left: 0° - 300°
Right: 0° - 60°
IP degree of protection
IP40 IEC 529
IP40 NF C 20-010
Complementary
switching angle
60 °
[Ui] rated insulation voltage
690 V 3)EN 60947-1
690 V 3)IEC 60947-1
rated operational power in W
13000 W AC-3, 380/440 V 1 phase EN/IEC 60947-3
15000 W AC-23A, 220/240 V 1 phase EN/IEC 60947-3
15000 W AC-3, 220/240 V 3 phases EN/IEC 60947-3
22000 W AC-23A, 380/440 V 1 phase EN/IEC 60947-3
30000 W AC-23A, 220/240 V 3 phases EN/IEC 60947-3
30000 W AC-3, 380/440 V 3 phases EN/IEC 60947-3
30000 W AC-3, 660/690 V 3 phases EN/IEC 60947-3
3700 W AC-3, 110 V 1 phase EN/IEC 60947-3
45000 W AC-23A, 380/440 V 3 phases EN/IEC 60947-3
5500 W AC-23A, 110 V 1 phase EN/IEC 60947-3
65000 W AC-23A, 660/690 V 3 phases EN/IEC 60947-3
7500 W AC-3, 220/240 V 1 phase EN/IEC 60947-3
[Ie] rated operational current AC
100 A AC-21A EN/IEC 60947-3
short-circuit current
15000 A
short-circuit protection
125 A cartridge fuse gG
[Uimp] rated impulse withstand voltage
6 kV EN 947-1
6 kV IEC 947-1
contact operation
Slow-break
positive opening
With
electrical connection
Captive screw clamp terminals flexible 1 x 25 mm²
Captive screw clamp terminals solid 1 x 35 mm²
tightening torque
2,5 N.m
switching capacity in mA
100000 mA DC 140 V 3 resistive 1 ms)
100000 mA DC 24 V 1 inductive 50 ms)
100000 mA DC 48 V 1 resistive 1 ms)
100000 mA DC 48 V 2 inductive 50 ms)
100000 mA DC 70 V 3 inductive 50 ms)
100000 mA DC 95 V 2 resistive 1 ms)
115000 mA DC 24 V 1 resistive 1 ms)
115000 mA DC 48 V 2 resistive 1 ms)
115000 mA DC 70 V 3 resistive 1 ms)
33000 mA DC 30 V 1 inductive 50 ms)
33000 mA DC 60 V 2 inductive 50 ms)
33000 mA DC 90 V 3 inductive 50 ms)
mechanical durability
300000 cycles
CAD overall width
88 mm
CAD overall height
88 mm
CAD overall depth
154 mm
net weight
0,59 kg
Environment
standards
EN/IEC 60947-3
product certifications
CULus 120 V 5 hp 1 phase
CULus 240 V 10 hp 1 phase
CULus 240 V 20 hp 3 phases
CULus 480 V 30 hp 3 phases
protective treatment
TC
ambient air temperature for operation
-25…55 °C
ambient air temperature for storage
-40…70 °C
electrical shock protection class
Class II IEC 60536
Class II NF C 20-030
Offer Sustainability
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
