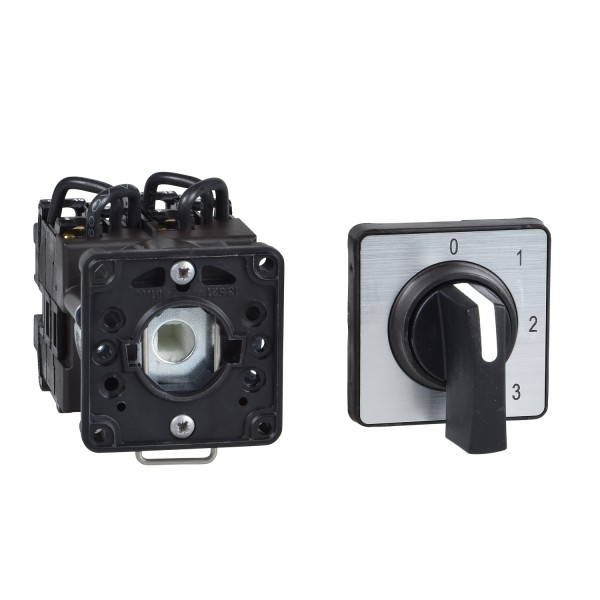

cam stepping switch - 2-pole - 45° - 20 A - for Ø 22 mm

Ülevaaded: 0

Tootekood: K2F013QCH

Quick Overview

Saadavus: Ei saa enam tellida

29,64 € (ilma KM-ta)

Details

Main
range of product
Harmony K
product or component type
Complete cam switch
component name
K2
[Ith] conventional free air thermal current
20 A
mounting location
Front
fixing mode
Ø 22 mm hole
cam switch head type
With front plate 45 x 45 mm
type of operator
Black handle, length = 35 mm
rotary handle padlocking
Without
presentation of legend
With metallic legend, 0 - 1 - 2 - 3 black marking
cam switch function
Stepping switch
return
Without
off position
With Off position
poles description
2P
switching positions
Right: 0° - 45° - 90° - 135°
IP degree of protection
IP65 conforming to IEC 529
IP65 conforming to NF C 20-010
Complementary
number of steps
3
switching angle
45 °
[Ui] rated insulation voltage
690 V (pollution degree 3) conforming to IEC 60947-1
[Ithe] conventional enclosed thermal current
16 A
electrical durability
200000 cycles AC-23
200000 cycles AC-3
600000 cycles AC-15
600000 cycles AC-21
maximum operating rate
2.5 cyc/mn AC-21
2.5 cyc/mn AC-23
2.5 cyc/mn AC-3
8.333 cyc/mn AC-15
short-circuit current
10000 A
short-circuit protection
20 A cartridge fuse, type gG
[Uimp] rated impulse withstand voltage
4 kV in isolating function
6 kV conforming to IEC 947-1
contact operation
Slow-break
positive opening
With
electrical connection
Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
mechanical durability
1000000 cycles
CAD overall width
45 mm
CAD overall height
50 mm
CAD overall depth
69 mm
net weight
0.19 kg
Environment
standards
EN 60947-3 for power circuit
EN 60947-5-1 for control circuit
IEC 60947-3 for power circuit
IEC 60947-5-1 for control circuit
CENELEC EN 50013
product certifications
CSA 240 V 3 hp 3 phases 2 -pole(s)
UL 240 V 0.33 hp 1 phase 2 -pole(s)
CSA 240 V 1 hp 1 phase
UL 240 V 1 hp 3 phases
protective treatment
TC
ambient air temperature for operation
-25…55 °C
ambient air temperature for storage
-40…70 °C
shock resistance
30 gn conforming to IEC 68-2-27
vibration resistance
5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
overvoltage category
Class II conforming to IEC 536
Class II conforming to NF C 20-030
Offer Sustainability
Sustainable offer status
Green Premium product
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
