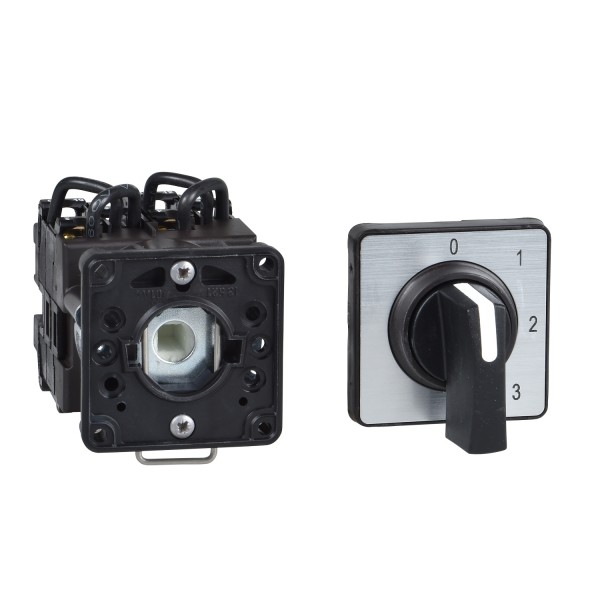

cam switch - 2-pole - 90° - 20 A - for Ø 22 mm

Ülevaaded: 0

Tootekood: K2B1002HCH

Quick Overview

Saadavus: Tellimisel

18,18 € (ilma KM-ta)

Details

Main
range of product
Harmony K
product or component type
Complete cam switch
component name
K2
[Ith] conventional free air thermal current
20 A
mounting location
Front
fixing mode
Ø 22 mm hole
cam switch head type
With front plate 45 x 45 mm
type of operator
Black handle 35 mm
rotary handle padlocking
Without
presentation of legend
With metallic, 0 - 1 black
cam switch function
Switch
return
Without
off position
With Off position
poles description
2P
switching positions
Right: 0° - 90°
IP degree of protection
IP65 IEC 529
IP65 NF C 20-010
Complementary
switching angle
90 °
[Ui] rated insulation voltage
690 V 3)IEC 60947-1
[Ithe] conventional enclosed thermal current
16 A
rated operational power in W
1300 W AC-3, 230 V 1 phase IEC 60947-3
14000 W AC-21, 400 V 3 phases IEC 60947-3
17000 W AC-21, 500...660 V 3 phases IEC 60947-3
2200 W AC-3, 230 V 3 phases IEC 60947-3
2200 W AC-3, 400 V 1 phase IEC 60947-3
4000 W AC-23A, 230 V 3 phases IEC 60947-3
4000 W AC-3, 400 V 3 phases IEC 60947-3
4000 W AC-3, 500 V 3 phases IEC 60947-3
4000 W AC-3, 690 V 3 phases IEC 60947-3
5500 W AC-23A, 400 V 3 phases IEC 60947-3
5500 W AC-23A, 500 V 3 phases IEC 60947-3
5500 W AC-23A, 690 V 3 phases IEC 60947-3
8000 W AC-21, 230 V 3 phases IEC 60947-3
[Ie] rated operational current AC
8 A 400 V AC-3 3 phases IEC 60947-3
10,8 A 400 V AC-23A 3 phases IEC 60947-3
14,6 A 230 V AC-23A 3 phases IEC 60947-3
4,7 A 690 V AC-3 3 phases IEC 60947-3
6,4 A 690 V AC-23A 3 phases IEC 60947-3
6,5 A 500 V AC-3 3 phases IEC 60947-3
8,3 A 230 V AC-3 3 phases IEC 60947-3
8,9 A 500 V AC-23A 3 phases IEC 60947-3
2 A 500 V AC-15 IEC 60947-5-1
3 A 400 V AC-15 IEC 60947-5-1
4 A 230 V AC-15 IEC 60947-5-1
electrical durability
200000 cycles AC-23
200000 cycles AC-3
600000 cycles AC-15
600000 cycles AC-21
maximum operating rate
2,5 cyc/mn AC-21
2,5 cyc/mn AC-23
2,5 cyc/mn AC-3
8,333 cyc/mn AC-15
short-circuit current
10000 A
short-circuit protection
20 A cartridge fuse gG
[Uimp] rated impulse withstand voltage
4 kV in isolating function
6 kV IEC 60947-1
contact operation
Slow-break
positive opening
With
electrical connection
Captive screw clamp terminals flexible 2 x 1.5 mm²
Captive screw clamp terminals solid 1 x 2.5 mm²
mechanical durability
1000000 cycles
CAD overall width
45 mm
CAD overall height
50 mm
CAD overall depth
49 mm
net weight
0,15 kg
Environment
standards
EN 60947-3 power circuit
EN 60947-5-1 control circuit
IEC 60947-3 power circuit
IEC 60947-5-1 control circuit
CENELEC EN 50013
product certifications
CSA 240 V 3 hp 3 phases 2
UL 240 V 0,33 hp 1 phase 2
CSA 240 V 1 hp 1 phase
UL 240 V 1 hp 3 phases
protective treatment
TC
ambient air temperature for operation
-25…55 °C
ambient air temperature for storage
-40…70 °C
shock resistance
30 gn IEC 68-2-27
vibration resistance
5 gn 10…150 Hz)IEC 68-2-6
overvoltage category
Class II IEC 536
Class II NF C 20-030
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
