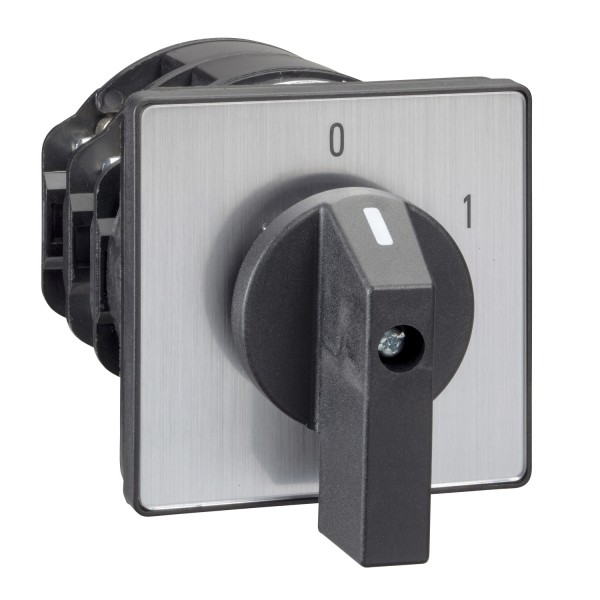

cam switch - 3-pole - 60° - 150 A - screw mounting

Product was successfully added to your shopping cart.

cam switch - 3-pole - 60° - 150 A - screw mounting

Tootekood: K150C003AP

Quick Overview

Saadavus: Ei saa enam tellida

174,34 € (ilma KM-ta)

Details

Main
range of product	Harmony K
product or component type	Complete cam switch
component name	K150
[Ith] conventional free air thermal current	150 A
product mounting	Front mounting
fixing mode	4 holes
cam switch head type	With front plate 88 x 88 mm
type of operator	Black handle
rotary handle padlocking	Without
presentation of legend	With metallic, 0 - 1 black
cam switch function	Switch
return	Without
off position	With Off position
poles description	3P
switching positions	Right: 0° - 60°
IP degree of protection	IP40 IEC 529 IP40 NF C 20-010

Complementary
switching angle	60 °
[Ui] rated insulation voltage	690 V 3)EN 60947-1 690 V 3)IEC 60947-1
rated operational power in W	11000 W AC-23A, 110 V 1 phase EN/IEC 60947-3 11000 W AC-3, 220/240 V 1 phase EN/IEC 60947-3 18500 W AC-3, 380/440 V 1 phase EN/IEC 60947-3 22000 W AC-23A, 220/240 V 1 phase EN/IEC 60947-3 22000 W AC-3, 220/240 V 3 phases EN/IEC 60947-3 30000 W AC-3, 660/690 V 3 phases EN/IEC 60947-3 37000 W AC-23A, 220/240 V 3 phases EN/IEC 60947-3 37000 W AC-23A, 380/440 V 1 phase EN/IEC 60947-3 37000 W AC-3, 380/440 V 3 phases EN/IEC 60947-3 5500 W AC-3, 110 V 1 phase EN/IEC 60947-3 55000 W AC-23A, 660/690 V 3 phases EN/IEC 60947-3 75000 W AC-23A, 380/440 V 3 phases EN/IEC 60947-3
[Ie] rated operational current AC	150 A AC-21A EN/IEC 60947-3
short-circuit current	25000 A
short-circuit protection	200 A cartridge fuse gG
[Uimp] rated impulse withstand voltage	6 kV EN 947-1 6 kV IEC 947-1
contact operation	Slow-break
positive opening	With
electrical connection	Captive screw clamp terminals flexible 1 x 50 mm² Captive screw clamp terminals solid 1 x 70 mm²
tightening torque	2,5 N.m
switching capacity in mA	150000 mA DC 140 V 3 resistive 1 ms) 150000 mA DC 24 V 1 inductive 50 ms) 150000 mA DC 24 V 1 resistive 1 ms) 150000 mA DC 48 V 1 resistive 1 ms) 150000 mA DC 48 V 2 inductive 50 ms) 150000 mA DC 48 V 2 resistive 1 ms) 150000 mA DC 70 V 3 inductive 50 ms) 150000 mA DC 70 V 3 resistive 1 ms) 150000 mA DC 95 V 2 resistive 1 ms) 50000 mA DC 30 V 1 inductive 50 ms) 50000 mA DC 60 V 2 inductive 50 ms) 50000 mA DC 90 V 3 inductive 50 ms)
mechanical durability	300000 cycles
CAD overall width	88 mm
CAD overall height	88 mm
CAD overall depth	140 mm
net weight	0,79 kg

Environment
standards	EN/IEC 60947-3
product certifications	CULus 240 V 15 hp 1 phase CULus 240 V 25 hp 3 phases CULus 480 V 40 hp 3 phases CULus 120 V 7,5 hp 1 phase
protective treatment	TC
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
electrical shock protection class	Class II IEC 60536 Class II NF C 20-030

Offer Sustainability
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
