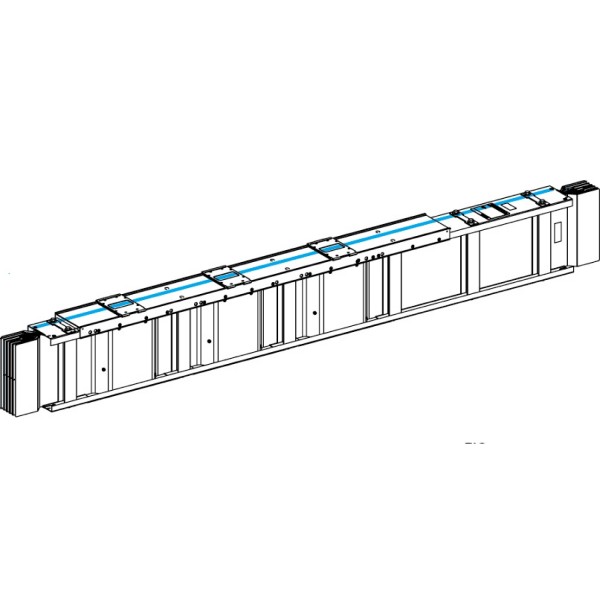

CANALIS KT 4X0800AL PLUG-IN LENGTH PARAM

Details

Main
range	Canalis
product name	KT
product or component type	Busbar trunking
busbar description	Distribution length
device short name	KTA
tap-off unit compatibility	Plug-in tap-off unit from Canalis KS Plug-in tap-off unit from Canalis KT
device application	High power distribution
material	Aluminium
[Ie] rated operational current	800 A at 35 °C
polarity	3L + N + PE
number of tap-off outlets	3
nominal output current	25…630 A
earth conductor	Standard earth
short-circuit level	Standard version
length	3001…3500 mm
provided equipment	Jointing unit Trunking unit

Complementary
housing material	Polyester film
contacts material	Copper
[Ue] rated operational voltage	1000 V
network frequency	50/60 Hz
[Ui] rated insulation voltage	1000 V
[Icw] rated short-time withstand current	31 kA
[Ipk] rated peak withstand current	64 kA
electrical connection	Sliding contact
radiated magnetic field	0.4 µT
thermal stress limit	961 A².s
THDI	0…15 % 800 A 15…33 % 1000 A 33…100 % 1250 A
maximum voltage drop	<0.0083 V with power factor = 1 at 50 Hz with 1A for 100 m long <0.0081 V with power factor = 0.9 at 50 Hz with 1A for 100 m long <0.0076 V with power factor = 0.8 at 50 Hz with 1A for 100 m long <0.0069 V with power factor = 0.7 at 50 Hz with 1A for 100 m long
mounting mode	By hook
mounting support	Pendant Cantilever arm
installation direction	Vertical Horizontal
neutral position	Right
tap-off unit interval	500 mm
standards	IEC 61439-6 IEC 61439-1
dimension type	Made to measure
width	140 mm
height	74 mm
colour	White (RAL 9001)
linear load	13 kg/m

Environment
IP degree of protection	IP55 conforming to IEC 60529
IK degree of protection	IK08 conforming to IEC 62262
derating factor	0…35 °C (100 % of In) 35…40 °C (97 % of In) 40…45 °C (93 % of In) 45…50 °C (90 % of In) 50…55 °C (86 % of In)

Offer Sustainability
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
