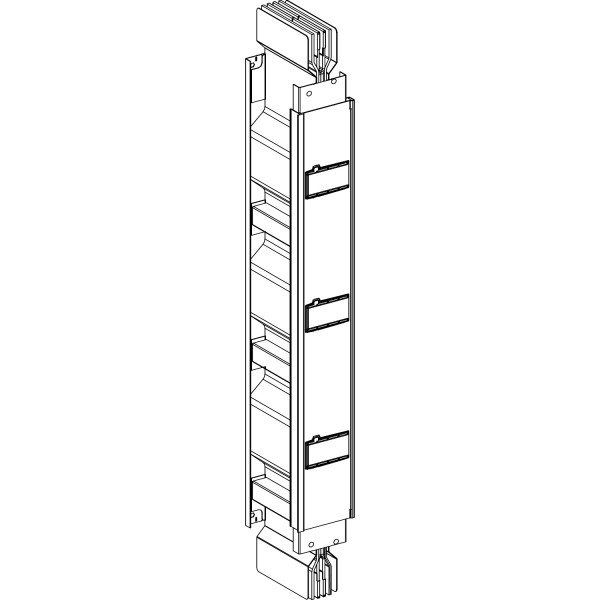

CANALIS KT 4X1250AL PLUG-IN LENGTH 2M

Details

Main
range	Canalis
product name	KT
product or component type	Busbar trunking
busbar description	Distribution length
device short name	KTA
tap-off unit compatibility	Plug-in tap-off unit Canalis KS Plug-in tap-off unit Canalis KT
device application	High power distribution
material	Aluminium
[Ie] rated operational current	1250 A 35 °C
polarity	3L + N + PE
number of tap-off outlets	3
nominal output current	25…630 A
earth conductor	Standard earth
short-circuit level	Standard version
length	2000 mm
provided equipment	Jointing unit Trunking unit

Complementary
housing material	Polyester film
contacts material	Copper
[Ue] rated operational voltage	1000 V
network frequency	50/60 Hz
[Ui] rated insulation voltage	1000 V
[Icw] rated short-time withstand current	50 kA
[Ipk] rated peak withstand current	110 kA
electrical connection	Sliding contact
radiated magnetic field	0,75 µT
thermal stress limit	2500 A².s
THDI	0…15 % 1250 A 15…33 % 1600 A 33…100 % 2000 A
maximum voltage drop	<0,0049 V 1 50 Hz with 1A for 100 m long <0,005 V 0,9 50 Hz with 1A for 100 m long <0,0047 V 0,8 50 Hz with 1A for 100 m long <0,0043 V 0,7 50 Hz with 1A for 100 m long
mounting mode	By hook
mounting support	Cantilever arm Pendant
installation direction	Vertical Horizontal
neutral position	Right
tap-off unit interval	500 mm
standards	IEC 61439-6 IEC 61439-1
dimension type	Fix
width	140 mm
height	124 mm
colour	White RAL 9001)
net weight	36 kg
linear load	18 kg/m

Environment
IP degree of protection	IP55 IEC 60529
IK degree of protection	IK08 IEC 62262
derating factor	0…35 °C 100 % of In) 35…40 °C 97 % of In) 40…45 °C 93 % of In) 45…50 °C 90 % of In) 50…55 °C 86 % of In)

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
