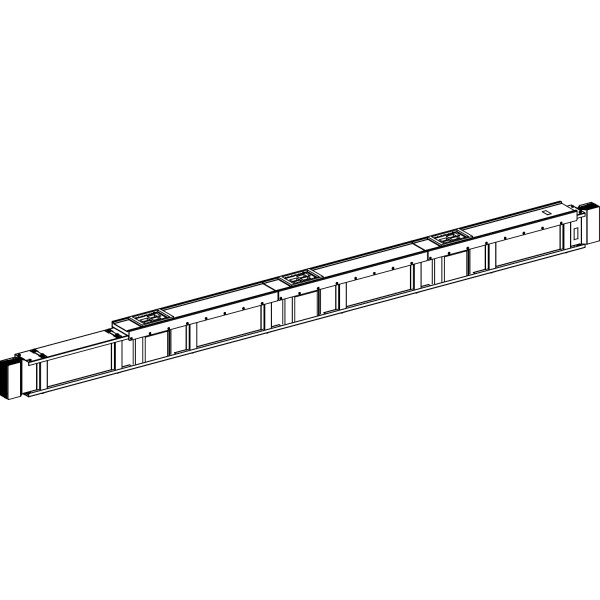

CANALIS KT 4X4000AL KH PLUG-IN LENGTH 4M

Details

Main
range	Canalis
product name	KT
product or component type	Busbar trunking
busbar description	Distribution length
device short name	KTA
tap-off unit compatibility	Plug-in tap-off unit Canalis KH
device application	High power distribution
material	Aluminium
[Ie] rated operational current	4000 A 35 °C
polarity	3L + N + PE
number of tap-off outlets	3
nominal output current	100…630 A
earth conductor	Standard earth
short-circuit level	Standard version
length	4000 mm
provided equipment	Trunking unit

Complementary
housing material	Polyester film
contacts material	Copper
[Ue] rated operational voltage	1000 V
network frequency	50/60 Hz
[Ui] rated insulation voltage	1000 V
[Icw] rated short-time withstand current	120 kA
[Ipk] rated peak withstand current	264 kA
electrical connection	Sliding contact
radiated magnetic field	3 µT
thermal stress limit	14400 A².s
THDI	0…15 % 4000 A
maximum voltage drop	<0,0015 V 1 50 Hz with 1A for 100 m long <0,0016 V 0,9 50 Hz with 1A for 100 m long <0,0015 V 0,8 50 Hz with 1A for 100 m long <0,0015 V 0,7 50 Hz with 1A for 100 m long
mounting mode	By hook
mounting support	Pendant Cantilever arm
installation direction	Vertical Horizontal
neutral position	Right
tap-off unit interval	1000 mm
standards	IEC 61439-6 IEC 61439-1
dimension type	Fix
width	140 mm
height	404 mm
colour	White RAL 9001)
net weight	180 kg
linear load	45 kg/m

Environment
IP degree of protection	IP55 IEC 60529
IK degree of protection	IK08 IEC 62262
derating factor	0…35 °C 100 % of In) 35…40 °C 97 % of In) 40…45 °C 93 % of In) 45…50 °C 90 % of In) 50…55 °C 86 % of In)
