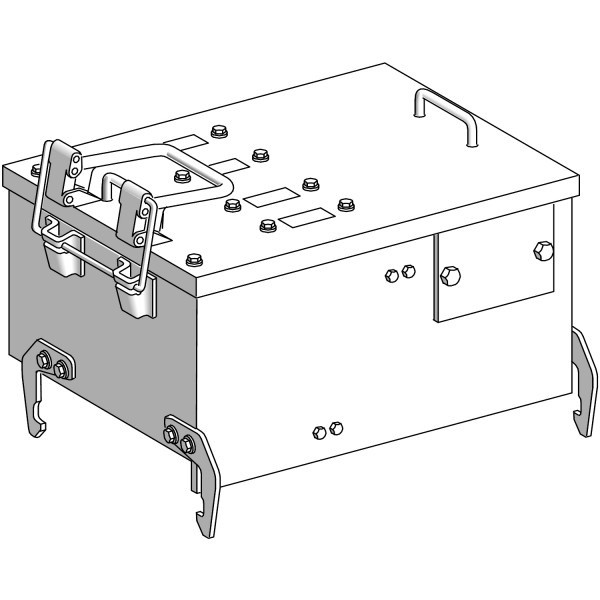

CANALIS TAP OFF BOX

Details

Main
range of product	Canalis
range compatibility	KT busbar trunking KH busbar trunking
product or component type	Tap-off unit
busbar trunking compatibility	Canalis KT busbar trunking KH plug-in Canalis KHF and KGF busbar trunking plug-in
[Ie] rated operational current	250 A
protection type	fuse isolator: blade type 1 - 250 A
provided equipment	fuse to be ordered separately
mounting mode	Plug-in with auto-clamping system
tap-off unit polarity	3L+PEN

Complementary
device application	Medium power distribution
[Ue] rated operational voltage	690 V
[Uimp] rated impulse withstand voltage	8 kV
[Ui] rated insulation voltage	800 V
network frequency	50/60 Hz
electrical connection	Cable clamp terminal 95 mm² 1)
door/cover opening side	Right
tap-off unit disconnection mode	By opening the door
standards	IEC 61439-1 IEC 61439-6
colour	White RAL 9001)
width	558 mm
depth	230 mm
depth (door open)	790 mm
height	455 mm
net weight	37 kg

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
