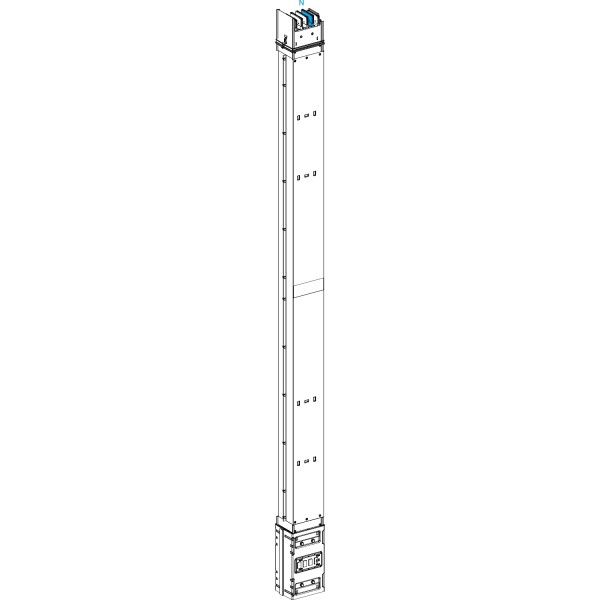

CANALIS - VERTICAL ELEMENT - MADE-TO-MEASURE WITH FIRE BARRIER

Details

Main
range of product	Canalis
product name	KS
offer type	Rising main
product or component type	Busbar trunking
busbar description	Fire barrier Rising main
BAR MATERIAL	Aluminium
device application	Rise medium power distribution
[Ie] rated operational current	360 A 35 °C
number of tap-off outlets	0
colour	White RAL 9001)

Complementary
[Ue] rated operational voltage	230...690 V
network frequency	50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ui] rated insulation voltage	690 V
[Icw] rated short-time withstand current	32,1 kA
[Ipk] rated peak withstand current	67,5 kA
electrical connection	Lubricated sliding contact
radiated magnetic field	0,89 µT
thermal stress limit	1225 kA².s
THDI	0…15 % 630 A 15…33 % 500 A 33…100 % 400 A
maximum voltage drop	<0,011 V 1 50 Hz with 1A for 100 m long <0,013 V 0,9 50 Hz with 1A for 100 m long <0,013 V 0,8 50 Hz with 1A for 100 m long <0,012 V 0,7 50 Hz with 1A for 100 m long
mounting mode	By screws
mounting position	Vertical - neutral on right
neutral position	Right
busbar trunking polarity	3L + N + PE
dimension type	Made to measure
width	146 mm
depth	113 mm
height	700…1900 mm
net weight	30 kg
