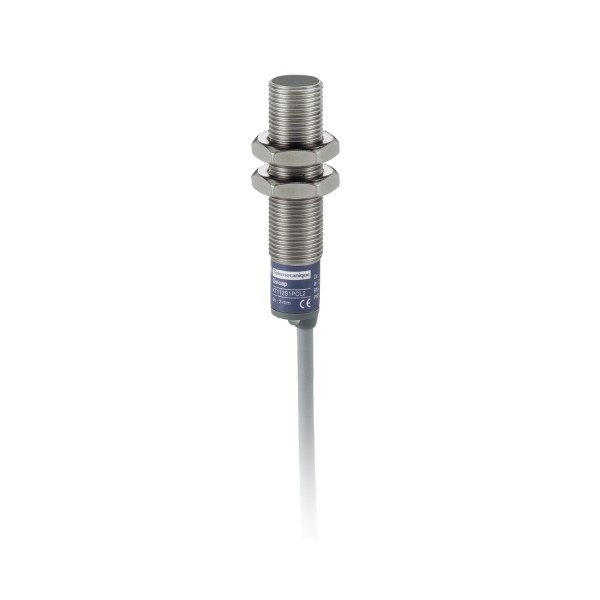

capacitive sensor - XT1 - cylindrical M12 - stainless steel - Sn 2mm

Details

Main
range of product	OsiSense XT
sensor type	Capacitive proximity sensor
product specific application	Detection of insulated or conductive materials
sensor name	XT1
sensor design	Cylindrical M12
size	50 mm
body type	Fixed
detector flush mounting acceptance	Flush mountable
material	Stainless steel
enclosure material	Stainless steel 303
type of output signal	Discrete
wiring technique	3-wire
[Sn] nominal sensing distance	2 mm
discrete output function	1 NO
output circuit type	DC
discrete output type	PNP
electrical connection	Cable
cable length	2 m
[Us] rated supply voltage	24 V DC reverse polarity protection
maximum delay response	5 ms
IP degree of protection	IP67 IEC 60529 IP67 IEC 60947-5-2

Complementary
ISO thread	M12 x 1
detection face	Frontal
[Sa] assured operating distance	0…1,44 mm
adjustment zone	0,5…5 mm
differential travel	< 0.2 x Sr
repeat accuracy	< 0.1 x Sr
wire insulation material	PVC
status LED	Output state indication 1 LED yellow)
supply voltage limits	12…30 V DC
maximum residual current	0,1 mA open state
protection type	Short-circuit protection
switching frequency	<= 300 Hz
maximum voltage drop	<2 V closed)
current consumption	< 15 mA
maximum delay first up	30 ms
maximum delay recovery	5 ms
maximum switching current	200 mA
marking	CE
setting-up	Sensitivity by potentiometer
threaded length	37 mm
length	50 mm
net weight	0,07 kg

Environment
standards	EN/IEC 60947-5-2
product certifications	CETLus
ambient air temperature for operation	-25…70 °C
vibration resistance	10 gn 1 mm 10…55 Hz)IEC 60068-2-6
shock resistance	30 gn 11 ms IEC 60068-2-27
resistance to electrostatic discharge	4 kV contact IEC 61000-4-2 8 kV air IEC 61000-4-2
resistance to electromagnetic fields	3 V/m IEC 61000-4-3
resistance to fast transients	2 kV IEC 61000-4-4

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah

Contractual warranty
Garantii	18 months
