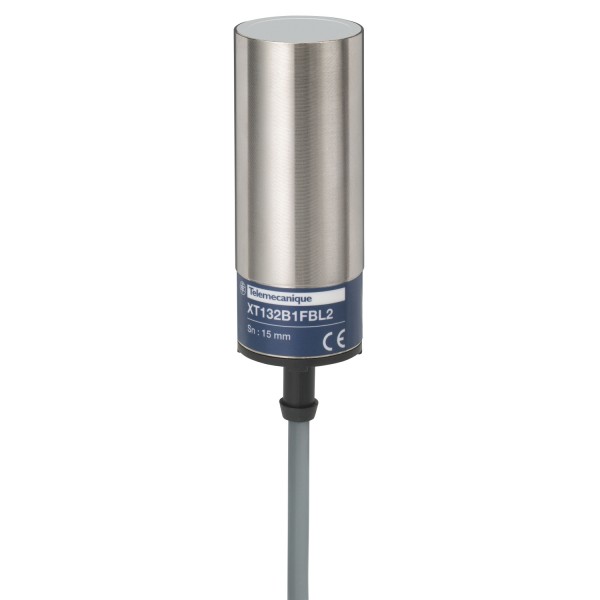

capacitive sensor - XT1 - cylindrical Ø 32 mm - brass - Sn 15 mm

Details

Main
range of product	OsiSense XT
sensor type	Capacitive proximity sensor
product specific application	Detection of insulated or conductive materials
sensor name	XT1
sensor design	Cylindrical Ø 32 mm plain
size	80 mm
body type	Fixed
detector flush mounting acceptance	Flush mountable
material	Metal
enclosure material	Nickel plated brass
type of output signal	Discrete
wiring technique	2-wire
[Sn] nominal sensing distance	15 mm
discrete output function	1 NC
output circuit type	AC
electrical connection	Cable
cable length	2 m
[Us] rated supply voltage	24...240 V AC 50...60 Hz
maximum delay response	30 ms
IP degree of protection	IP67 conforming to IEC 60529 IP67 conforming to IEC 60947-5-2

Complementary
detection face	Frontal
[Sa] assured operating distance	0…11 mm
adjustment zone	0…20 mm
differential travel	< 0.2 x Sr
repeat accuracy	< 0.15 x Sr
wire insulation material	PVC
status LED	Output state indication: 1 LED (yellow)
supply voltage limits	20…264 V AC
maximum residual current	5 mA open state
switching frequency	<= 15 Hz
maximum voltage drop	<10 V (closed)
current consumption	< 4 mA
maximum delay first up	200 ms
maximum delay recovery	30 ms
maximum switching current	300 mA
marking	CE
setting-up	Sensitivity by potentiometer
length	80 mm
net weight	0.4 kg

Environment
standards	EN/IEC 60947-5-2
product certifications	CULus
ambient air temperature for operation	-25…70 °C
vibration resistance	10 gn amplitude = 1 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn for 11 ms conforming to IEC 60068-2-27
resistance to electrostatic discharge	4 kV contact conforming to IEC 61000-4-2 8 kV air conforming to IEC 61000-4-2
resistance to electromagnetic fields	3 V/m conforming to IEC 61000-4-3
resistance to fast transients	2 kV conforming to IEC 61000-4-4

Offer Sustainability
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes

Contractual warranty
Warranty	18 months
