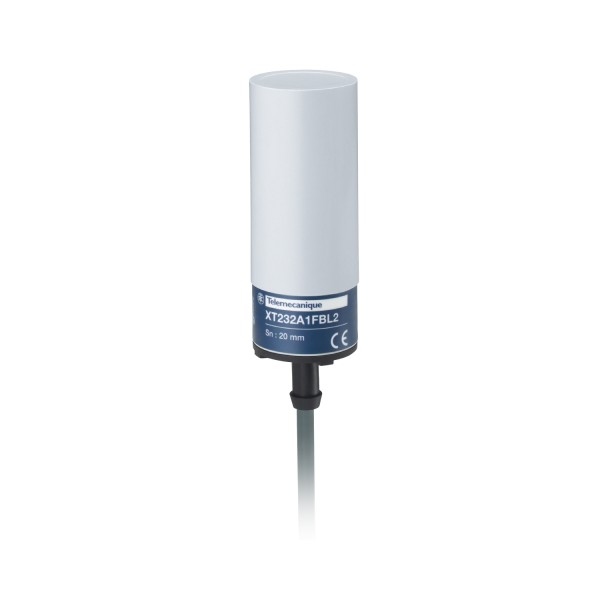

capacitive sensor - XT1 - cylindrical Ø 32 mm - plastic - Sn 20 mm

Details

Main
range of product	OsiSense XT
sensor type	Capacitive proximity sensor
product specific application	Detection of insulated or conductive materials
sensor name	XT2
sensor design	Cylindrical Ø 32 mm plain
size	80 mm
body type	Fixed
detector flush mounting acceptance	Non flush mountable
material	Plastic
enclosure material	Plastic
type of output signal	Discrete
wiring technique	2-wire
[Sn] nominal sensing distance	20 mm
discrete output function	1 NO
output circuit type	AC
electrical connection	Cable
cable length	2 m
[Us] rated supply voltage	24...240 V AC 50...60 Hz 24 V DC
maximum delay response	30 ms
IP degree of protection	IP67 double insulation IEC 60529

Complementary
detection face	Frontal
[Sa] assured operating distance	0…15 mm
adjustment zone	0…22 mm
differential travel	< 1...20 % Sr
repeat accuracy	< 5 % Sr
wire insulation material	PVC
status LED	Output state indication 1 LED yellow)
supply voltage limits	20…265 V AC
switching frequency	<= 15 Hz
maximum voltage drop	<10 V closed)
current consumption	< 4 mA
maximum delay first up	200 ms
maximum delay recovery	30 ms
maximum switching current	300 mA
marking	CE
setting-up	Sensitivity by potentiometer
length	80 mm
net weight	0,4 kg

Environment
standards	EN/IEC 60947-5-2
product certifications	CULus
ambient air temperature for operation	-10…60 °C
vibration resistance	10 gn 1 mm 10…55 Hz)IEC 60068-2-6
shock resistance	30 gn 11 ms IEC 60068-2-27
resistance to electrostatic discharge	4 kV contact IEC 61000-4-2 8 kV air IEC 61000-4-2
resistance to electromagnetic fields	3 V/m IEC 61000-4-3
resistance to fast transients	2 kV IEC 61000-4-4

Offer Sustainability
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah

Contractual warranty
Garantii	18 months
