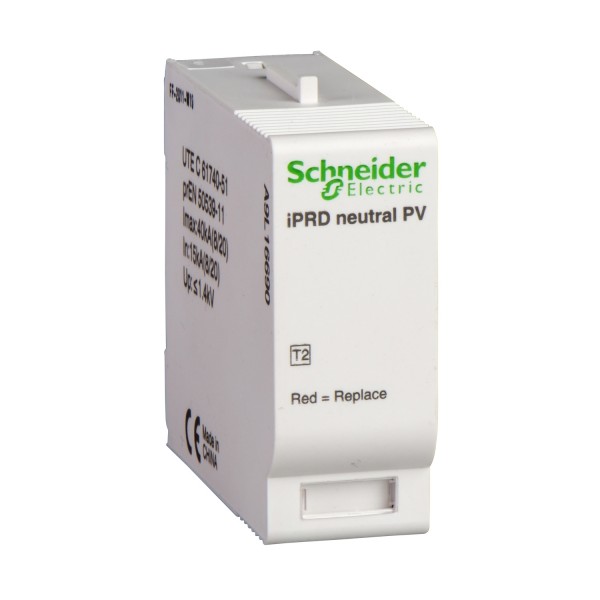

cartridge C neutral PV for surge arrester iPRD-DC

Tootekood: A9L16690

Quick Overview

Saadavus: Tellimisel

42,32 € (ilma KM-ta)

Qty:

Main
product or component type	Cartridge
device short name	C neutral PV
surge arrester type	Electrical distribution network

Complementary
surge arrester class type	Type 2
surge arrester technology	GDT
[Ue] rated operational voltage	600 V DC
nominal discharge current	20 kA
maximum discharge current	65 kA
[Uc] maximum continuous operating voltage	260 V
maximum [Up] voltage protection level	<1.4 kV type 2
local signalling	White/red flag
mounting mode	Plug-in
mounting support	Into SPD module
9 mm pitches	2
height	50 mm
width	18 mm
depth	60 mm
colour	White (RAL 9003)
material	PBT (polybutylene terephthalate)
response time	< 25 ns

Environment
standards	EN 61643-11 IEC 61643-1
IP degree of protection	IP20 front face:
relative humidity	5…90 %
operating altitude	0...2000 m
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C

Contractual warranty
Warranty	18 months
