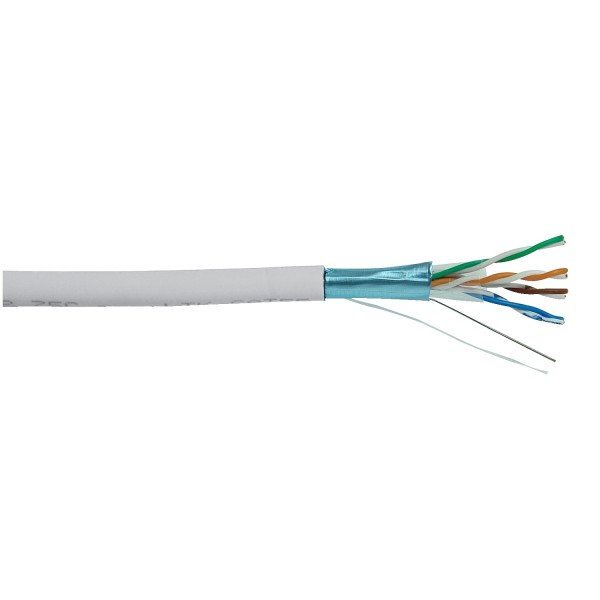

Category5e, 4pr FTP Cable 305m White, LSZH

Product was successfully added to your shopping cart.

Category5e, 4pr FTP Cable 305m White, LSZH

Tootekood: ACT4P5ESLS3RBWE

Quick Overview

Saadavus: Tellimisel

334,05 € (ilma KM-ta)

Qty:

Details

Main
range	Actassi
product or component type	Copper cable
colour tint	White
cable shielding type	F/UTP

Complementary
type of cable	4 pair cables
communication network category	5e
minimum return loss	20 dB 1 MHz 23 dB 4 MHz 25 dB 10 MHz 25 dB 16 MHz 25 dB 20 MHz 24.3 dB 25 MHz 23.6 dB 31.25 MHz 21.5 dB 62.5 MHz 20.1 dB 100 MHz 25 dB 8 MHz
attenuation	Guaranteed: 2 dB @ 1 MHz per 100 m cable Guaranteed: 4.1 dB @ 4 MHz per 100 m cable Guaranteed: 5.8 dB @ 8 MHz per 100 m cable Guaranteed: 6.5 dB @ 10 MHz per 100 m cable Guaranteed: 8.2 dB @ 16 MHz per 100 m cable Guaranteed: 9.3 dB @ 20 MHz per 100 m cable Guaranteed: 10.4 dB @ 25 MHz per 100 m cable Guaranteed: 11.7 dB @ 31.25 MHz per 100 m cable Guaranteed: 17 dB @ 62.5 MHz per 100 m cable Guaranteed: 22 dB @ 100 MHz per 100 m cable
power sum near-end crosstalk [PSNEXT]	Guaranteed: 62.3 dB at 1 MHz Guaranteed: 53.3 dB at 4 MHz Guaranteed: 48.8 dB at 8 MHz Guaranteed: 47.3 dB at 10 MHz Guaranteed: 42.8 dB at 20 MHz Guaranteed: 41.3 dB at 25 MHz Guaranteed: 39.9 dB at 31.25 MHz Guaranteed: 35.4 dB at 62.5 MHz Guaranteed: 32.3 dB at 100 MHz Guaranteed: 44.2 dB at 16 MHz
near end crosstalk [NEXT]	Guaranteed: 65.3 dB at 1 MHz Guaranteed: 56.3 dB at 4 MHz Guaranteed: 51.8 dB at 8 MHz Guaranteed: 50.3 dB at 10 MHz Guaranteed: 47.3 dB at 16 MHz Guaranteed: 45.8 dB at 20 MHz Guaranteed: 44.3 dB at 25 MHz Guaranteed: 42.9 dB at 31.25 MHz Guaranteed: 38.4 dB at 62.5 MHz Guaranteed: 35.3 dB at 100 MHz
maximum loop resistance	93.8 Ohm
capacitance unbalance	330 pF / 100 m
maximum resistance unbalance	5 %
wire insulation material	PE
AWG gauge	AWG 24
cable outer diameter	5 mm
cable length	305 m
cable weight	42 kg
	Asia Pacific

Environment
ambient air temperature for operation	-20…60 °C
flame retardance	LSZH

Offer Sustainability
Sustainable offer status	Green Premium product
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	No need of specific recycling operations

Contractual warranty
Warranty	18 months
