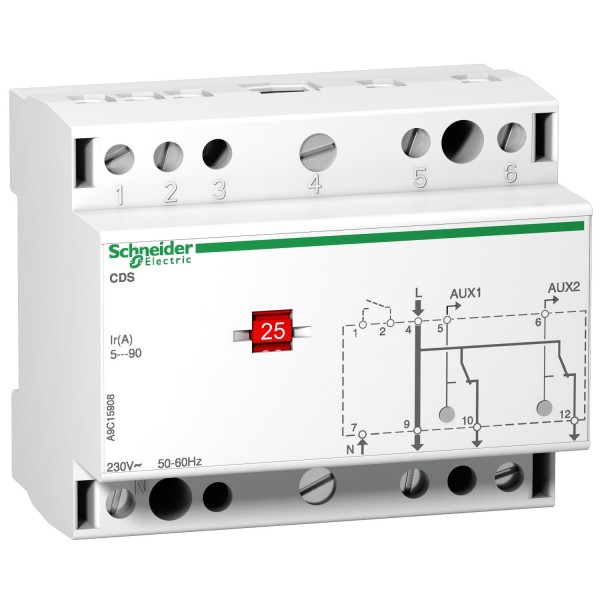

CDS - single phase load-shedding contactor - 2 channels

Ülevaaded: 0

Tootekood: A9C15908

Quick Overview

Saadavus: Tellimisel

196,27 € (ilma KM-ta)

Details

Main
range of product
Acti 9
product name
Acti 9 CDS
product or component type
Load-shedding contactor
device short name
CDS
number of channels
2
control and monitoring type
Cascade
poles description
1P
Complementary
setting
75
45
20
90
5
10
30
60
50
40
15
25
maximum power consumption in VA
12 VA
[Ue] rated operational voltage
230 V AC - 15...10 % at 50/60 Hz
rated current
15 A for non-priority circuit
Adjustable from 5 to 90 A for priority circuit
local signalling
Load-shedding indication: 2 LEDs (yellow)
mounting support
35 mm symmetrical DIN rail
Wall mounted
Panel mounting
9 mm pitches
10
connections - terminals
Non-priority circuit: screw terminal2.5…10 mm² flexible
Non-priority circuit: screw terminal2.5…10 mm² rigid
Priority circuit: screw terminal10…35 mm² flexible
Priority circuit: screw terminal10…50 mm² rigid
IP degree of protection
IP20 conforming to IEC 60529
height
77 mm
width
90 mm
depth
60 mm
net weight
0.3 kg
colour
White (RAL 9003)
tightening torque
Non-priority circuit: 2 N.m
Priority circuit: 3.5 N.m
wire stripping length
12 mm
13 mm
Environment
standards
EN 50081-1
NF C 61-750
EN 50081-2
ambient air temperature for operation
-5…55 °C
ambient air temperature for storage
-40…70 °C
tropicalisation
2 conforming to IEC 60068-1
relative humidity
95 % at 55 °C
Offer Sustainability
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
