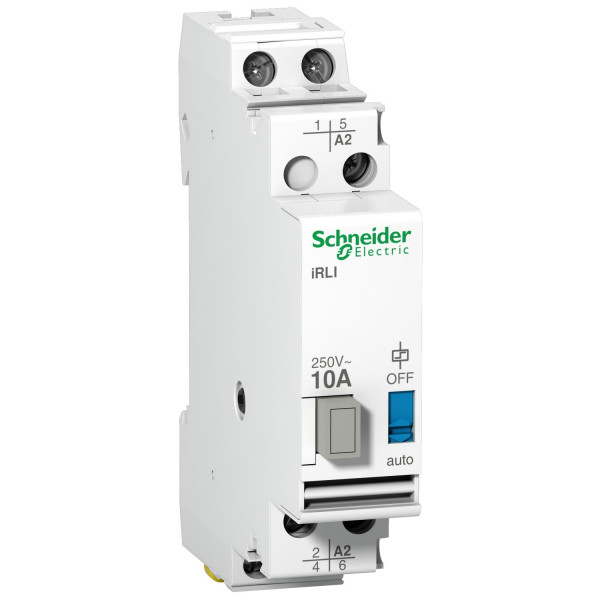

Changeover relay iRLI 10A 2P Uc 24VAC Ue 250VAC

Ülevaaded: 0

Tootekood: A9E15537

Quick Overview

Saadavus: Tellimisel

30,64 € (ilma KM-ta)

Details

Main
range of product
Acti 9
product name
Acti 9 iRLI
product or component type
Relay
device short name
IRLI
device application
Changeover relay
signal contacts composition
1 C/O + 1 NO
[Uc] control circuit voltage
24 V AC 50/60 Hz
Complementary
[Ie] rated operational current
10 A at 230 V AC (cos Phi = 1)
[Ui] rated insulation voltage
250 V AC
supply holding power
4 VA
supply inrush power
4 VA
mounting mode
Fixed
mounting support
35 mm symmetrical DIN rail
9 mm pitches
2
height
88 mm
width
18 mm
depth
70 mm
net weight
0.112 kg
colour
White
electrical durability
AC-21: 100000 cycles
connections - terminals
Tunnel type terminals 0.5…6 mm²
Environment
standards
NF C 45-250
IEC 255
IP degree of protection
IP20
ambient air temperature for operation
-5…55 °C
ambient air temperature for storage
-40…70 °C
Offer Sustainability
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
