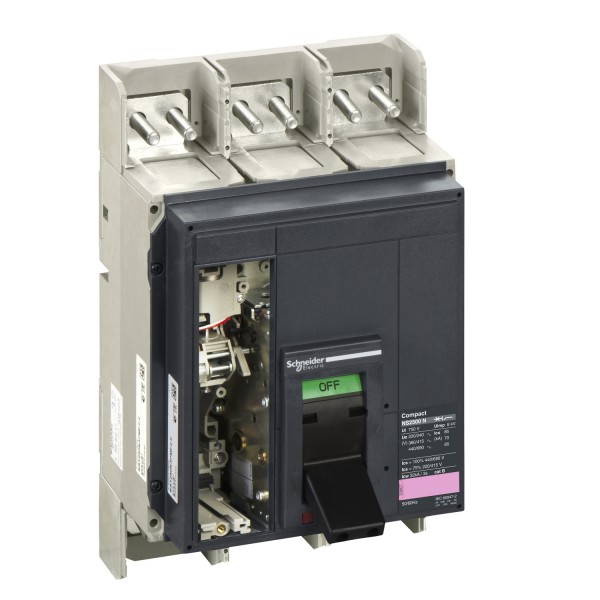

circuit breaker basic frame, Compact NS 2500N, 50 kA at 415 VAC, 2500 A, fixed, manually operated, without trip unit, 3P

Details

Complementary
network frequency	50/60 Hz
control type	Toggle
mounting mode	Fixed
mounting support	Backplate
upside connection	Front
downside connection	Front
(In) rated current up to 65 °C	2500 A 50 °C
[Ui] rated insulation voltage	800 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage	8 kVIEC 60947-2
[Ue] rated operational voltage	690 V AC 50/60 Hz IEC 60947-2
circuit breaker CT rating	2500 A
breaking capacity	85 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 65 kA Icu 440 V AC 50/60 Hz IEC 60947-2 70 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 65 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2 65 kA Icu 500/525 V AC 50/60 Hz IEC 60947-2
[Ics] rated service breaking capacity	65 kA 440 V AC 50/60 Hz IEC 60947-2 manual operation) 65 kA 500/525 V AC 50/60 Hz IEC 60947-2 manual operation) 65 kA 660/690 V AC 50/60 Hz IEC 60947-2 manual operation) 52 kA 380/415 V AC 50/60 Hz IEC 60947-2 manual operation) 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 manual operation)
protection type	Without protection
mechanical durability	5000 cycles IEC 60947-2
electrical durability	1000 cycles 690 V AC 50/60 Hz In IEC 60947-2 2000 cycles 440 V AC 50/60 Hz In IEC 60947-2 2000 cycles 690 V AC 50/60 Hz In/2 IEC 60947-2 3000 cycles 440 V AC 50/60 Hz In/2 IEC 60947-2
connection pitch	115 mm
[Icw] rated short-time withstand current	32 kA 3 s IEC 60947-2
integral instant protection	130 kA
height	350 mm
width	420 mm
depth	160 mm

Environment
standards	IEC 60947-2
product certifications	ASEFA LCIE ASTA
power losses	100 W
IP degree of protection	IP40IEC 60529
IK degree of protection	IK07 EN 50102
pollution degree	3 IEC 60947
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
