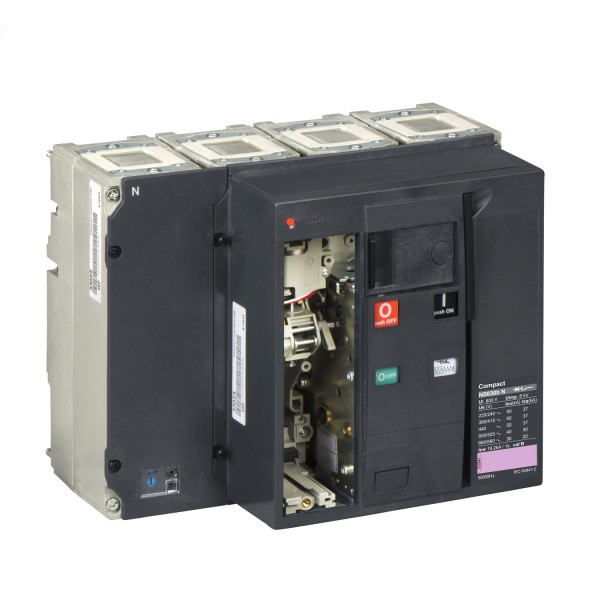

circuit breaker basic frame, Compact NS 630bN, 50 kA at 415 VAC 50/60 Hz, 630 A, fixed, electrically operated, without trip unit, 4 poles

Details

Complementary
network frequency	50/60 Hz
control type	Motor mechanism
mounting mode	Fixed
mounting support	Backplate
(In) rated current up to 65 °C	630 A 50 °C
[Ui] rated insulation voltage	800 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage	8 kVIEC 60947-2
[Ue] rated operational voltage	690 V AC 50/60 Hz IEC 60947-2
circuit breaker CT rating	630 A
breaking capacity	30 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2 50 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 50 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 40 kA Icu 500/525 V AC 50/60 Hz IEC 60947-2
[Ics] rated service breaking capacity	30 kA 500/525 V AC 50/60 Hz IEC 60947-2 electrical operation) 22 kA 660/690 V AC 50/60 Hz IEC 60947-2 electrical operation) 37 kA 220/240 V AC 50/60 Hz IEC 60947-2 electrical operation) 37 kA 380/415 V AC 50/60 Hz IEC 60947-2 electrical operation) 37 kA 440 V AC 50/60 Hz IEC 60947-2 electrical operation)
protection type	Without protection
mechanical durability	10000 cycles IEC 60947-2
electrical durability	2000 cycles 690 V AC 50/60 Hz In IEC 60947-2 4000 cycles 690 V AC 50/60 Hz In/2 IEC 60947-2 5000 cycles 440 V AC 50/60 Hz In IEC 60947-2 6000 cycles 440 V AC 50/60 Hz In/2 IEC 60947-2
connection pitch	70 mm
[Icw] rated short-time withstand current	19,2 kA 1 s IEC 60947-2
integral instant protection	40 kA
height	327 mm
width	280 mm
depth	147 mm

Environment
standards	IEC 60947-2
product certifications	LCIE ASEFA ASTA
power losses	10 W
IP degree of protection	IP40IEC 60529
IK degree of protection	IK07 EN 50102
pollution degree	3 IEC 60947
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
