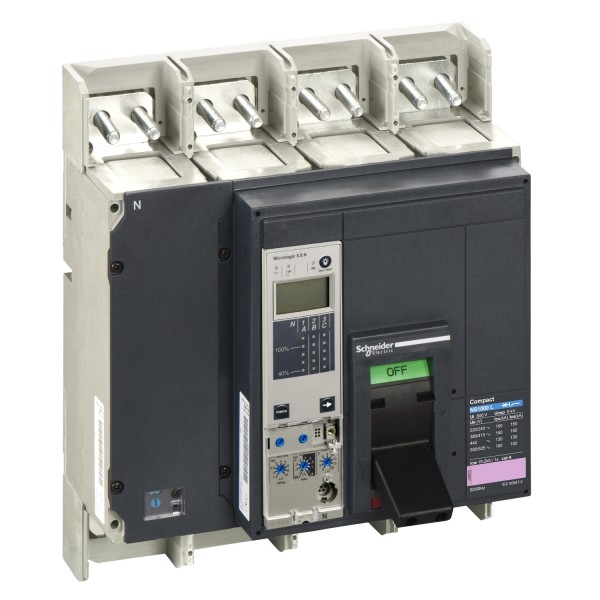

circuit breaker Compact NS1000L - Micrologic 5.0 A - 1000 A - 4 poles 4t

Ülevaaded: 0

Tootekood: 33521

Quick Overview

Saadavus: Tellimisel

3 882,25 € (ilma KM-ta)

Details

Main
range
Compact
range of product
NS630b...1600
product or component type
Circuit breaker
device short name
Compact NS1000L
device application
Distribution
poles description
4P
protected poles description
4t
neutral position
Left
network type
AC
breaking capacity code
L
suitability for isolation
Yes IEC 60947-2
utilisation category
Category A
trip unit name
Micrologic 5.0 A
trip unit technology
Electronic
trip unit rating
1000 A 50 °C
Complementary
network frequency
50/60 Hz
control type
Toggle
Rotary handle
mounting mode
Fixed
mounting support
Backplate
upside connection
Front
downside connection
Front
(In) rated current up to 65 °C
1000 A 50 °C
[Ui] rated insulation voltage
800 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kVIEC 60947-2
[Ue] rated operational voltage
690 V AC 50/60 Hz IEC 60947-2
circuit breaker CT rating
1000 A
breaking capacity
130 kA Icu 440 V AC 50/60 Hz IEC 60947-2
150 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2
150 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2
100 kA Icu 500/525 V AC 50/60 Hz IEC 60947-2
[Ics] rated service breaking capacity
100 kA 500/525 V AC 50/60 Hz IEC 60947-2
130 kA 440 V AC 50/60 Hz IEC 60947-2
150 kA 220/240 V AC 50/60 Hz IEC 60947-2
150 kA 380/415 V AC 50/60 Hz IEC 60947-2
auxiliary contact composition
1 NO/NC
mechanical durability
10000 cycles
electrical durability
2000 cycles 690 V AC 50/60 Hz In IEC 60947-2
3000 cycles 690 V AC 50/60 Hz In/2 IEC 60947-2
3000 cycles 440 V AC 50/60 Hz In IEC 60947-2
4000 cycles 440 V AC 50/60 Hz In/2 IEC 60947-2
local signalling
Positive contact indication
neutral protection setting
Ir
trip unit protection functions
LSI
protection type
Short time short-circuit protection
Instantaneous short-circuit protection
Overload protection (long time)
long time pick-up adjustment type Ir
Adjustable
long time pick-up adjustment range
0.4...1 x In
long time delay adjustment type
Adjustable 9 settings
[tr] long-time delay adjustment range
0,7…16,6 s 7.2 x Ir
12,5…600 s 1.5 x Ir
0,5…24 s 6 x Ir
thermal memory
20 mn
short-time pick-up adjustment type Isd
Adjustable 9 settings
[Isd] short-time pick-up adjustment range
1.5...10 x Ir
short-time delay adjustment type
Adjustable
[tsd] short-time delay adjustment range
0,1…0,4 s I²t=on
0…0,4 s I²t=off
[tsd] short-time delay adjustment range
0,02…0,5 s
instantaneous pick-up adjustment type Ii
Adjustable
instantaneous pick-up adjustment range
Off
2...15 x In
zone selective interlocking ZSI
With
display type
LCD display
type of measurement
Ammeter
height
327 mm
width
280 mm
depth
147 mm
Environment
standards
IEC 60947-2
product certifications
ASEFA
ASTA
power losses
34 W
IP degree of protection
IP40 IEC 60529
IK degree of protection
IK07 EN 50102
pollution degree
3 IEC 60947
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Contractual warranty
Garantii
18 months
