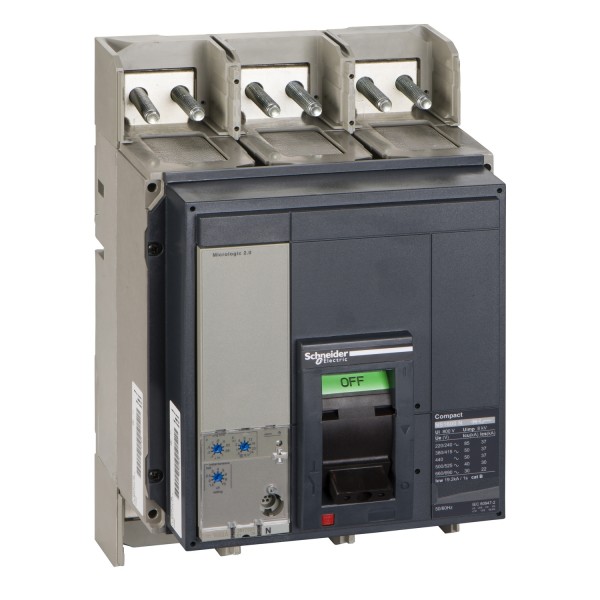

circuit breaker Compact NS1600N, 50 kA at 415 VAC, Micrologic 2.0 trip unit, 1600 A, fixed,3 poles 3d

Ülevaaded: 0

Tootekood: 33482

Quick Overview

Saadavus: Tellimisel

2 691,35 € (ilma KM-ta)

Details

Main
range
Compact
range of product
NS630b...1600
product or component type
Circuit breaker
device short name
Compact NS1600N
device application
Distribution
poles description
3P
protected poles description
3t
network type
AC
breaking capacity code
N
suitability for isolation
Yes IEC 60947-2
utilisation category
Category B
trip unit name
Micrologic 2.0
trip unit technology
Electronic
trip unit rating
1600 A 50 °C
Complementary
network frequency
50/60 Hz
control type
Toggle
Rotary handle
mounting mode
Fixed
mounting support
Backplate
upside connection
Front
downside connection
Front
(In) rated current up to 65 °C
1600 A 50 °C
[Ui] rated insulation voltage
800 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kVIEC 60947-2
[Ue] rated operational voltage
690 V AC 50/60 Hz IEC 60947-2
circuit breaker CT rating
1600 A
breaking capacity
30 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2
50 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2
50 kA Icu 440 V AC 50/60 Hz IEC 60947-2
85 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2
40 kA Icu 500/525 V AC 50/60 Hz IEC 60947-2
[Ics] rated service breaking capacity
30 kA 500/525 V AC 50/60 Hz IEC 60947-2
37 kA 220/240 V AC 50/60 Hz IEC 60947-2
37 kA 380/415 V AC 50/60 Hz IEC 60947-2
22 kA 660/690 V AC 50/60 Hz IEC 60947-2
37 kA 440 V AC 50/60 Hz IEC 60947-2
auxiliary contact composition
1 NO/NC
mechanical durability
10000 cycles
electrical durability
5000 cycles 440 V AC 50/60 Hz In/2 IEC 60947-2
1000 cycles 690 V AC 50/60 Hz In IEC 60947-2
2000 cycles 440 V AC 50/60 Hz In IEC 60947-2
2000 cycles 690 V AC 50/60 Hz In/2 IEC 60947-2
local signalling
Positive contact indication
[Icw] rated short-time withstand current
19,2 kA
trip unit protection functions
LI
protection type
Instantaneous short-circuit protection
Overload protection (long time)
long time pick-up adjustment type Ir
Adjustable
long time pick-up adjustment range
0.4...1 x In
long time delay adjustment type
Adjustable 9 settings
[tr] long-time delay adjustment range
0,7…16,6 s 7.2 x Ir
12,5…600 s 1.5 x Ir
0,5…24 s 6 x Ir
thermal memory
20 mn
instantaneous pick-up adjustment type Ii
Adjustable
instantaneous pick-up adjustment range
1.5...10 x Ir
integrated instantaneous protection
40 kA
height
327 mm
width
210 mm
depth
147 mm
Environment
standards
IEC 60947-2
product certifications
ASTA
ASEFA
power losses
74 W
IP degree of protection
IP40 IEC 60529
IK degree of protection
IK07 EN 50102
pollution degree
3 IEC 60947
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
