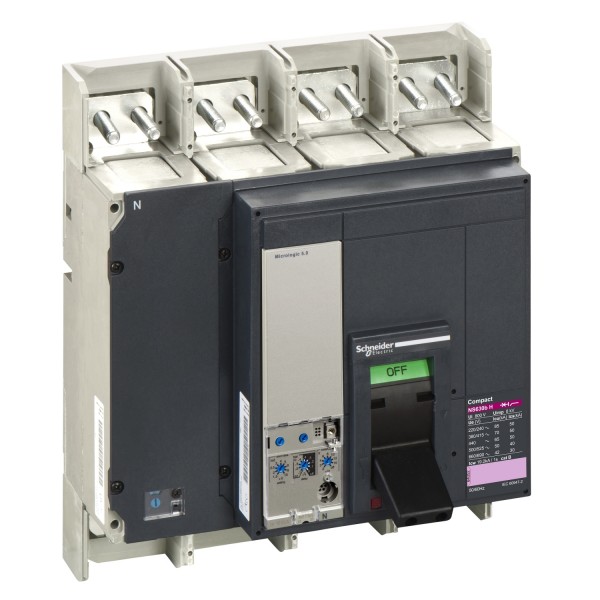

circuit breaker Compact NS630bH - Micrologic 5.0 - 630 A - 4 poles 4t

Ülevaaded: 0

Tootekood: 33550

Quick Overview

Saadavus: Tellimisel

2 213,34 € (ilma KM-ta)

Details

Main
range
Compact
range of product
NS630b...1600
product or component type
Circuit breaker
device short name
Compact NS630bH
device application
Distribution
poles description
4P
protected poles description
4t
neutral position
Left
network type
AC
breaking capacity code
H
suitability for isolation
Yes IEC 60947-2
utilisation category
Category B
trip unit name
Micrologic 5.0
trip unit technology
Electronic
trip unit rating
630 A 50 °C
Complementary
network frequency
50/60 Hz
control type
Toggle
Rotary handle
mounting mode
Fixed
mounting support
Backplate
upside connection
Front
downside connection
Front
(In) rated current up to 65 °C
630 A 50 °C
[Ui] rated insulation voltage
800 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kVIEC 60947-2
[Ue] rated operational voltage
690 V AC 50/60 Hz IEC 60947-2
circuit breaker CT rating
630 A
breaking capacity
42 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2
65 kA Icu 440 V AC 50/60 Hz IEC 60947-2
70 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2
85 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2
50 kA Icu 500/525 V AC 50/60 Hz IEC 60947-2
[Ics] rated service breaking capacity
30 kA 660/690 V AC 50/60 Hz IEC 60947-2
40 kA 500/525 V AC 50/60 Hz IEC 60947-2
50 kA 220/240 V AC 50/60 Hz IEC 60947-2
50 kA 380/415 V AC 50/60 Hz IEC 60947-2
50 kA 440 V AC 50/60 Hz IEC 60947-2
auxiliary contact composition
1 NO/NC
mechanical durability
10000 cycles
electrical durability
2000 cycles 690 V AC 50/60 Hz In IEC 60947-2
4000 cycles 690 V AC 50/60 Hz In/2 IEC 60947-2
5000 cycles 440 V AC 50/60 Hz In IEC 60947-2
6000 cycles 440 V AC 50/60 Hz In/2 IEC 60947-2
local signalling
Positive contact indication
[Icw] rated short-time withstand current
19,2 kA
neutral protection setting
Ir
trip unit protection functions
LSI
protection type
Overload protection (long time)
Short time short-circuit protection
Instantaneous short-circuit protection
long time pick-up adjustment type Ir
Adjustable
long time pick-up adjustment range
0.4...1 x In
long time delay adjustment type
Adjustable 9 settings
[tr] long-time delay adjustment range
0,7…16,6 s 7.2 x Ir
12,5…600 s 1.5 x Ir
0,5…24 s 6 x Ir
thermal memory
20 mn
short-time pick-up adjustment type Isd
Adjustable 9 settings
[Isd] short-time pick-up adjustment range
1.5...10 x Ir
short-time delay adjustment type
Adjustable
[tsd] short-time delay adjustment range
0,1…0,4 s I²t=on
0…0,4 s I²t=off
[tsd] short-time delay adjustment range
0,02…0,5 s
instantaneous pick-up adjustment type Ii
Adjustable
instantaneous pick-up adjustment range
2...15 x In
Off
integrated instantaneous protection
40 kA
zone selective interlocking ZSI
With
height
327 mm
width
280 mm
depth
147 mm
Environment
standards
IEC 60947-2
product certifications
ASTA
ASEFA
power losses
10 W
IP degree of protection
IP40 IEC 60529
IK degree of protection
IK07 EN 50102
pollution degree
3 IEC 60947
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Contractual warranty
Garantii
18 months
