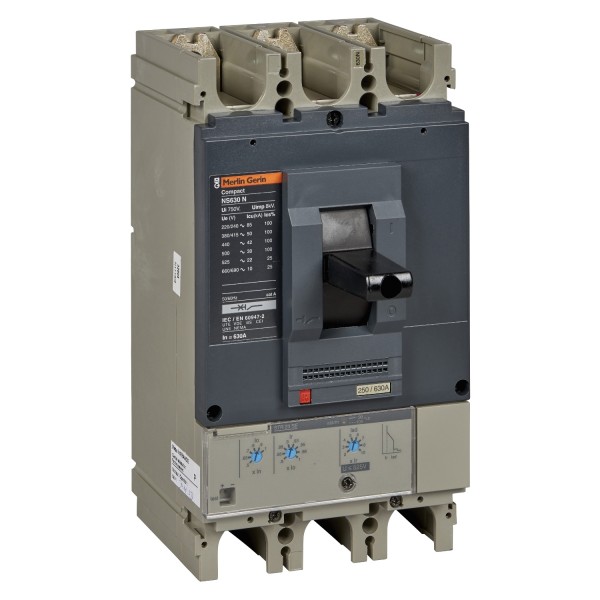

circuit breaker Compact NS630L - STR23SE - 630 A - 3 poles 3d

Ülevaaded: 0

Tootekood: 32897

Quick Overview

Saadavus: Tellimisel

1 709,81 € (ilma KM-ta)

Details

Main
range of product
Compact NS100...630
product or component type
Circuit breaker
device short name
Compact NS630L
circuit breaker name
Compact NS630L
device application
Distribution
poles description
3P
protected poles description
3t
network type
AC
DC
network frequency
50/60 Hz
[In] rated current
500 A at 65 °C
630 A at 40 °C
[Ui] rated insulation voltage
750 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV conforming to IEC 60947-2
[Ue] rated operational voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
750 V DC conforming to IEC 60947-2
breaking capacity code
L
breaking capacity
130 kA at 480 V AC 50/60 Hz conforming to NEMA AB1 HIC
200 kA at 240 V AC 50/60 Hz conforming to NEMA AB1 HIC
130 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
150 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
150 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity
130 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
150 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
150 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
70 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
suitability for isolation
Yes conforming to IEC 60947-2
utilisation category
Category A
trip unit name
STR23SE
trip unit technology
Electronic
trip unit rating
630 A
protection type
Instantaneous short-circuit protection
Short time short-circuit protection
Overload protection (long time)
pollution degree
3 conforming to IEC 60947
Complementary
control type
Toggle
mounting mode
Fixed
mounting support
Backplate
upside connection
Front
downside connection
Front
circuit breaker CT rating
630 A
mechanical durability
15000 cycles
electrical durability
4000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2
8000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
connection pitch
45 mm
local signalling
Positive contact indication
long time pick-up adjustment type Ir
Adjustable 48 settings
long time pick-up adjustment range
0.4...1 x In
long time delay adjustment type
Fixed
[tr] long-time delay adjustment range
90…180 s 1.5 x Ir
3.2…5 s 7.2 x Ir
5…7.5 s 6 x Ir
short-time pick-up adjustment type Isd
Adjustable 8 settings
[Isd] short-time pick-up adjustment range
2...10 x Ir
short-time delay adjustment type
Fixed
[tsd] short-time delay adjustment range
0.04…0.06 s
instantaneous pick-up adjustment type Ii
Fixed
instantaneous pick-up adjustment range
11 x In
display type
LED
height
255 mm
width
140 mm
depth
110 mm
Environment
standards
IEC 60947-2
product certifications
KEMA
LCIE
ASTA
ASEFA
IP degree of protection
IP40 conforming to IEC 60529
IK degree of protection
IK07 conforming to EN 50102
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Contractual warranty
Warranty
18 months
