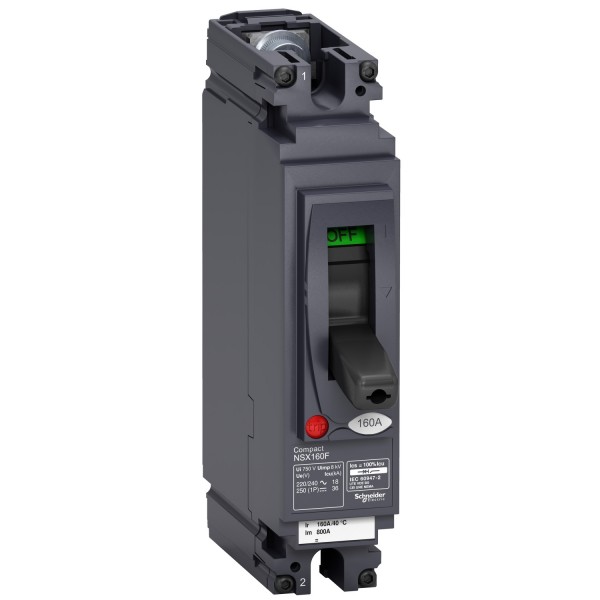

circuit breaker Compact NSX160F AC/DC, 18 kA at 240 VAC, TMD trip unit 125 A, 1 pole 1d

Details

Main
range	Compact
product name	Compact NSX
product or component type	Circuit breaker
device short name	Compact NSX160F
device application	Distribution
poles description	1P
protected poles description	1t
network type	DC AC
network frequency	50/60 Hz
[In] rated current	125 A 40 °C
[Ui] rated insulation voltage	750 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage	8 kVIEC 60947-2
[Ue] rated operational voltage	250 V DC IEC 60947-2 277 V AC 50/60 Hz IEC 60947-2
Breaking capacity code	F 18 kA 240 V AC
breaking capacity	36 kA Icu 250 V DC 1P IEC 60947-2 36 kA Icu 125 V DC 1P IEC 60947-2 18 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2
[Ics] rated service breaking capacity	36 kA 250 V DC IEC 60947-2 36 kA 125 V DC IEC 60947-2 18 kA 220/240 V AC 50/60 Hz IEC 60947-2
suitability for isolation	Yes IEC 60947-2
utilisation category	Category A
trip unit name	TM-D
trip unit technology	Thermal-magnetic
trip unit protection functions	LI
pollution degree	3 IEC 60947

Complementary
control type	Toggle
mounting mode	Fixed
mounting support	Backplate
upside connection	Front
downside connection	Front
auxiliary contact composition	Without
mechanical durability	20000 cycles
electrical durability	10000 cycles 277 V AC 50/60 Hz In IEC 60947-2 20000 cycles 277 V AC 50/60 Hz In/2 IEC 60947-2
connection pitch	35 mm
local signalling	Positive contact indication
protection type	Overload protection (thermal) Short-circuit protection (magnetic)
trip unit rating	125 A 40 °C
long time pick-up adjustment type Ir	Fixed
long time pick-up adjustment range	0.8...1 x In
instantaneous pick-up adjustment type Ii	Fixed
instantaneous pick-up adjustment range	1000 A
height	161 mm
width	105 mm
depth	86 mm
compatibility code	NSX160

Environment
standards	EN/IEC 60947 UL 508
product certifications	Marine EAC CCC
IP degree of protection	IP40 IEC 60529
IK degree of protection	IK07 EN 50102
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.

Contractual warranty
Garantii	18 months
