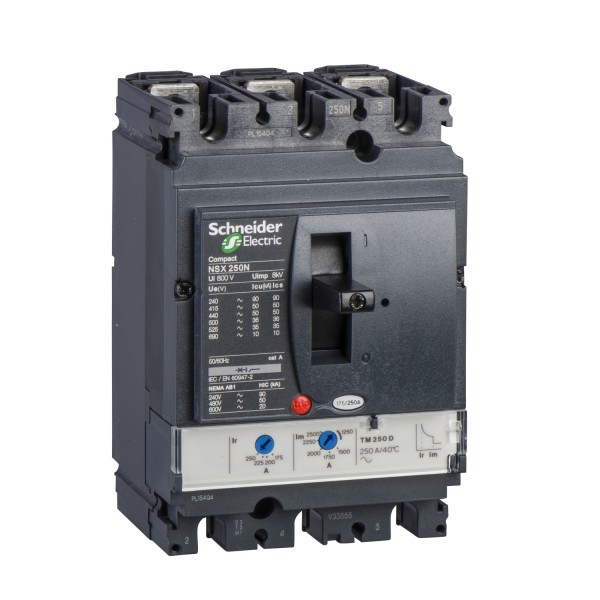

circuit breaker Compact NSX250F, 36 kA at 415 VAC, TMD trip unit 200 A, 3 poles 2d

Details

Main
range	Compact
product name	Compact NSX
product or component type	Circuit breaker
device short name	Compact NSX250F
device application	Distribution
poles description	3P
protected poles description	2t
network type	AC
network frequency	50/60 Hz
[In] rated current	200 A 40 °C
[Ui] rated insulation voltage	800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ue] rated operational voltage	690 V AC 50/60 Hz
Breaking capacity code	F 36 kA 415 V AC
breaking capacity	85 kA 240 V AC 50/60 Hz UL 508 22 kA Icu 525 V AC 50/60 Hz IEC 60947-2 35 kA Icu 440 V AC 50/60 Hz IEC 60947-2 36 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 8 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2 85 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 35 kA 480 V AC 50/60 Hz UL 508 30 kA Icu 500 V AC 50/60 Hz IEC 60947-2 15 kA 600 V AC 50/60 Hz UL 508
[Ics] rated service breaking capacity	35 kA 440 V AC 50/60 Hz IEC 60947-2 36 kA 380/415 V AC 50/60 Hz IEC 60947-2 85 kA 220/240 V AC 50/60 Hz IEC 60947-2 22 kA 525 V AC 50/60 Hz IEC 60947-2 30 kA 500 V AC 50/60 Hz IEC 60947-2 8 kA 660/690 V AC 50/60 Hz IEC 60947-2
suitability for isolation	Yes EN 60947-2 Yes IEC 60947-2
utilisation category	Category A
trip unit name	TM-D
trip unit technology	Thermal-magnetic
trip unit protection functions	LI
pollution degree	3 IEC 60664-1

Complementary
control type	Toggle
mounting mode	Fixed
mounting support	Backplate
upside connection	Front
downside connection	Front
auxiliary contact composition	Without
mechanical durability	20000 cycles
electrical durability	10000 cycles 440 V In IEC 60947-2 10000 cycles 690 V In/2 IEC 60947-2 20000 cycles 440 V In/2 IEC 60947-2 5000 cycles 690 V In IEC 60947-2
connection pitch	35 mm
local signalling	Positive contact indication
protection type	Overload protection (thermal) Short-circuit protection (magnetic)
trip unit rating	200 A 40 °C
long time pick-up adjustment type Ir	Adjustable
long time pick-up adjustment range	0.7...1 x In
long time delay adjustment type	Fixed
[tr] long-time delay adjustment range	120…400 s 1.5 x In 15 s 6 x Ir
short-time pick-up adjustment type Isd	Adjustable
[Isd] short-time pick-up adjustment range	5...10 x In
short-time delay adjustment type	Fixed
height	161 mm
width	105 mm
depth	86 mm
net weight	2,4 kg
compatibility code	NSX250

Environment
overvoltage category	Class II
electrical shock protection class	Class II
standards	EN/IEC 60947 UL 508
product certifications	CCC Marine EAC
IP degree of protection	IP40 IEC 60529
IK degree of protection	IK07 IEC 62262
ambient air temperature for operation	-35…70 °C
ambient air temperature for storage	-55…85 °C
