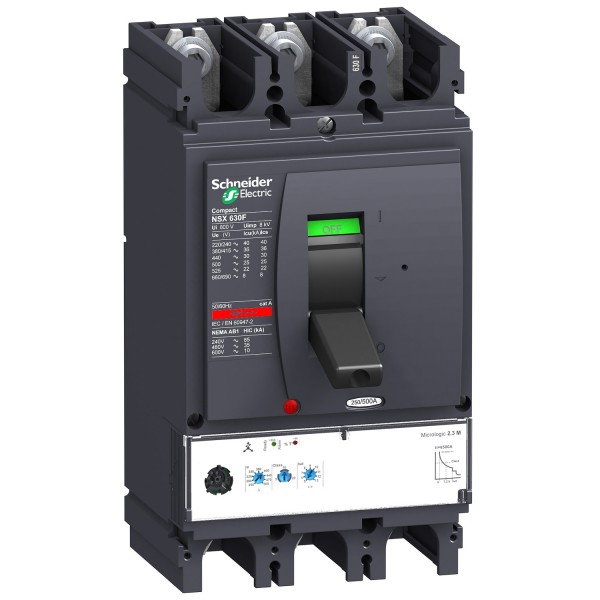

circuit breaker Compact NSX630H, 70 kA at 415 VAC, Micrologic 2.3 M trip unit 500 A, 3 poles 3d

Details

Main
range	Compact
product name	Compact NSX
product or component type	Circuit breaker
device short name	Compact NSX630H
device application	Motor
poles description	3P
protected poles description	3t
network type	AC
network frequency	50/60 Hz
[In] rated current	500 A 65 °C
[Ui] rated insulation voltage	800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ue] rated operational voltage	690 V AC 50/60 Hz
Breaking capacity code	H 70 kA 415 V AC
breaking capacity	85 kA 240 V AC 50/60 Hz UL 508 65 kA 480 V AC 50/60 Hz UL 508 100 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 35 kA Icu 525 V AC 50/60 Hz IEC 60947-2 50 kA Icu 500 V AC 50/60 Hz IEC 60947-2 65 kA Icu 440 V AC 50/60 Hz IEC 60947-2 70 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 20 kA 600 V AC 50/60 Hz UL 508 20 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2
[Ics] rated service breaking capacity	11 kA 525 V AC 50/60 Hz IEC 60947-2 10 kA 660/690 V AC 50/60 Hz IEC 60947-2 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 50 kA 500 V AC 50/60 Hz IEC 60947-2 65 kA 440 V AC 50/60 Hz IEC 60947-2 70 kA 380/415 V AC 50/60 Hz IEC 60947-2
suitability for isolation	Yes EN 60947-2 Yes IEC 60947-2
utilisation category	Category A
trip unit name	Micrologic 2.3 M
trip unit technology	Electronic
trip unit protection functions	LSoI
pollution degree	3 IEC 60664-1

Complementary
control type	Toggle
mounting mode	Fixed
mounting support	Backplate
upside connection	Front
downside connection	Front
mechanical durability	15000 cycles
electrical durability	6000 cycles 690 V In/2 IEC 60947-2 2000 cycles 690 V In IEC 60947-2 4000 cycles 440 V In IEC 60947-2 8000 cycles 440 V In/2 IEC 60947-2
connection pitch	45 mm
local signalling	LED 95 % Ith LED ready
motor tripping class	20 10 5
complementary motor protection	Phase unbalance
protection type	Overload protection (long time) Short time short-circuit protection with fixed delay Instantaneous short-circuit protection
trip unit rating	500 A 65 °C
long time pick-up adjustment type Ir	Adjustable 9 settings
long time pick-up adjustment range	250...500 A
[tr] long-time delay adjustment range	10 s 7.2 x Ir 10 120 s 1.5 x Ir 5 20 s 7.2 x Ir 20 240 s 1.5 x Ir 10 26 s 6 x Ir 20 480 s 1.5 x Ir 20 5 s 7.2 x Ir 5 13,5 s 6 x Ir 10 6,5 s 6 x Ir 5
thermal memory	20 minutes before and after tripping
short-time pick-up adjustment type Isd	Adjustable 9 settings
[Isd] short-time pick-up adjustment range	5...13 x Ir
short-time delay adjustment type	Fixed
instantaneous pick-up adjustment type Ii	Fixed
instantaneous pick-up adjustment range	6500 A
height	255 mm
width	140 mm
depth	110 mm
net weight	6,2 kg
compatibility code	NSX630

Environment
overvoltage category	Class II
electrical shock protection class	Class II
standards	EN/IEC 60947 UL 508
product certifications	CCC Marine EAC
IP degree of protection	IP40 IEC 60529
IK degree of protection	IK07 IEC 62262
ambient air temperature for operation	-35…70 °C
ambient air temperature for storage	-55…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
