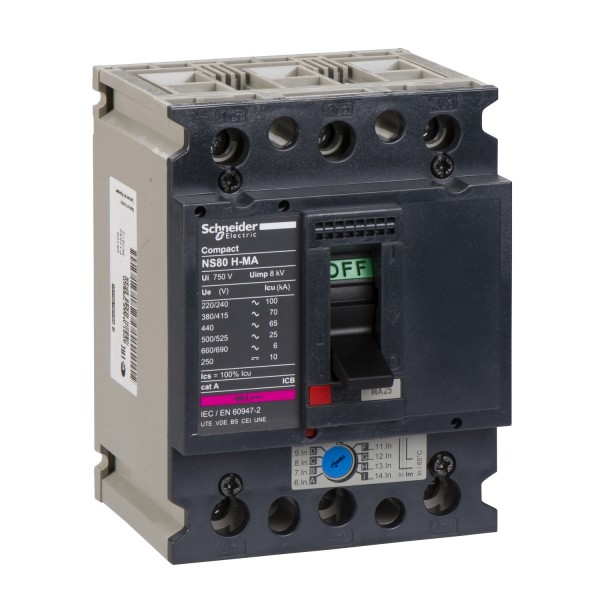

CIRCUIT BREAKER IEC 25A NEH MAG TRIP

Ülevaaded: 0

Tootekood: 28102

Quick Overview

Saadavus: Ei saa enam tellida

236,62 € (ilma KM-ta)

Details

Main
range of product
NS80H-MA
product or component type
Circuit breaker
device short name
Compact NS80H
circuit breaker name
Compact NS80H
device application
Motor
poles description
3P
protected poles description
3t
network type
AC
network frequency
50/60 Hz
[In] rated current
80 A at 65 °C
[Ui] rated insulation voltage
750 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV conforming to IEC 60947-2
[Ue] rated operational voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
breaking capacity code
H
breaking capacity
10 kA at 600 V AC 50/60 Hz conforming to NEMA AB1
100 kA at 240 V AC 50/60 Hz conforming to NEMA AB1
65 kA at 480 V AC 50/60 Hz conforming to NEMA AB1
100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
6 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity
100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
6 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
suitability for isolation
Yes conforming to IEC 60947-2
utilisation category
Category A
trip unit name
MA
trip unit technology
Magnetic
trip unit rating
25 A
protection type
Short-circuit protection (magnetic)
pollution degree
3 conforming to IEC 60947
Complementary
control type
Toggle
mounting mode
Fixed
mounting support
Backplate
upside connection
Tunnel terminal
downside connection
Tunnel terminal
mechanical durability
20000 cycles
electrical durability
10000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
7000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2
local signalling
Positive contact indication
instantaneous pick-up adjustment type Ii
Adjustable
instantaneous pick-up adjustment range
6...14 x In
zone selective interlocking ZSI
Without
earth-leakage protection
Without
height
120 mm
width
90 mm
depth
80 mm
Environment
standards
IEC 60947-2
product certifications
ASEFA
ASTA
KEMA
LCIE
IP degree of protection
IP40 conforming to IEC 60529
IK degree of protection
IK07 conforming to EN 50102
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Offer Sustainability
Sustainable offer status
Green Premium product
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
