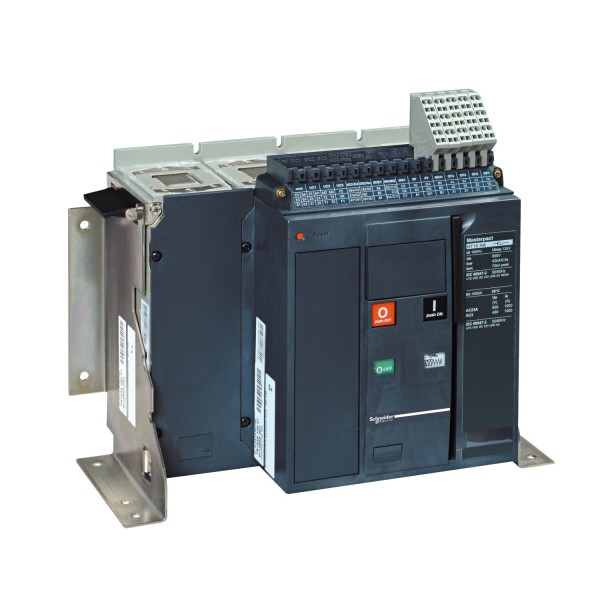

circuit breaker Masterpact NT06L1 - 630 A - 4 poles - fixed - w/o trip unit

Ülevaaded: 0

Tootekood: 47117

Quick Overview

Saadavus: Tellimisel

2 917,24 € (ilma KM-ta)

Details

Main
range of product
Masterpact NT
product or component type
Basic frame
device short name
Masterpact NT06
circuit breaker name
Masterpact NT06L1
poles description
4P
neutral position
Left
network type
AC
breaking capacity code
L1
suitability for isolation
Yes IEC 60947-2
utilisation category
Category A
Complementary
network frequency
50/60 Hz
control type
Push-button
mounting mode
Fixed
[In] rated current
630 A 40 °C
[Ui] rated insulation voltage
1000 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage
12 kVIEC 60947-2
[Icm] rated short-circuit making capacity
220 kA 525 V AC 50/60 Hz
286 kA 440 V AC 50/60 Hz
330 kA 220/415 V AC 50/60 Hz
52 kA 690 V AC 50/60 Hz
[Ue] rated operational voltage
690 V AC 50/60 Hz IEC 60947-2
circuit breaker CT rating
630 A
breaking capacity
100 kA Icu 525 V AC 50/60 Hz IEC 60947-2
130 kA Icu 440 V AC 50/60 Hz IEC 60947-2
25 kA Icu 690 V AC 50/60 Hz IEC 60947-2
150 kA Icu 220...240 V AC 50/60 Hz IEC 60947-2
150 kA Icu 380...415 V AC 50/60 Hz IEC 60947-2
[Ics] rated service breaking capacity
100 kA 525 V AC 50/60 Hz IEC 60947-2
130 kA 440 V AC 50/60 Hz IEC 60947-2
150 kA 220/415 V AC 50/60 Hz IEC 60947-2
25 kA 690 V AC 50/60 Hz IEC 60947-2
protection type
Without protection
mechanical durability
12500 cycles without maintenance IEC 60947-2
electrical durability
AC-23A 3000 cycles 690 V AC 50/60 Hz without maintenance IEC 60947-2
AC-23A 6000 cycles 440 V AC 50/60 Hz without maintenance IEC 60947-2
AC-3 6000 cycles 440 V AC 50/60 Hz without maintenance IEC 60947-2
2000 cycles 690 V AC 50/60 Hz without maintenance IEC 60947-2
3000 cycles 440 V AC 50/60 Hz without maintenance IEC 60947-2
connection pitch
70 mm
[Icw] rated short-time withstand current
10 kA 0.5 s IEC 60947-2
integral instant protection
5,67…6,93 kA
maximum breaking time
9 ms
maximum closing response time
50 ms
height
301 mm
width
346 mm
depth
196 mm
Environment
standards
IEC 60947-2
product certifications
LCIE
ASEFA
pollution degree
3 IEC 60664-1
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…85 °C
Contractual warranty
Garantii
18 months
