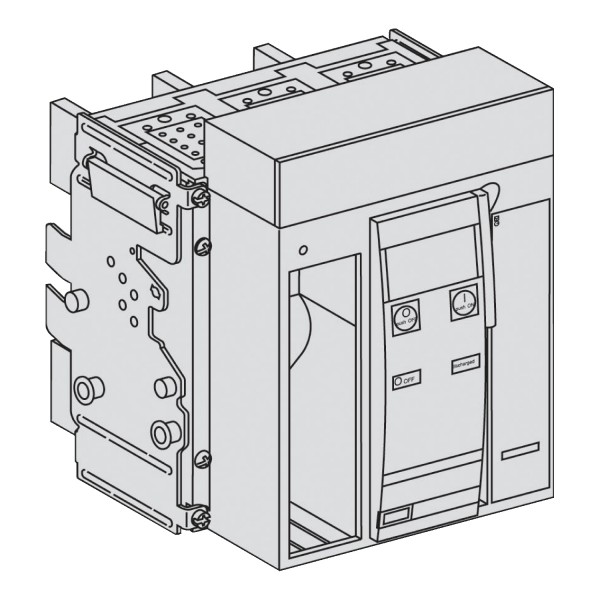

circuit breaker Masterpact NT12N - 1250 A - 3 poles - D - w/o trip unit - UL 489

Tootekood: 33783

Quick Overview

Saadavus: Tellimisel

3 770,59 € (ilma KM-ta)

Qty:

Complementary
network frequency	50/60 Hz
control type	Push-button
mounting mode	Drawout
[In] rated current	1200 A
[Ue] rated operational voltage	240...600 V AC 50/60 Hz
breaking capacity	35 kA at 600 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 480 V AC 50/60 Hz conforming to IEC 60947-2
protection type	Without protection
connection pitch	70 mm
[Icw] rated short-time withstand current	35 kA 0.5 s
integral instant protection	40 kA
maximum breaking time	30 ms
maximum closing response time	50 ms
height	322 mm
width	288 mm
depth	276.5 mm

Environment
standards	UL 439
IP degree of protection	IP30

Contractual warranty
Warranty	18 months
