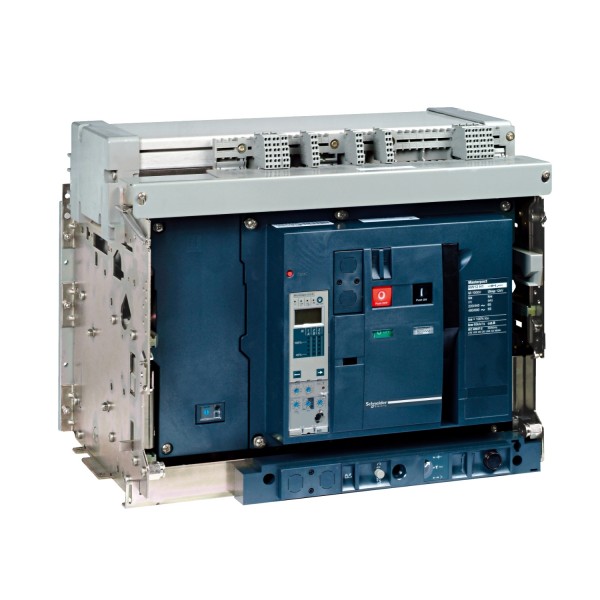

circuit breaker Masterpact NW10H2 - 1000 A - 4 poles - fixed

Details

Complementary
network frequency	50/60 Hz
control type	Push-button
mounting mode	Fixed
[In] rated current	1000 A 40 °C
[Ui] rated insulation voltage	1000 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage	12 kVIEC 60947-2
[Icm] rated short-circuit making capacity	187 kA 525 V AC 50/60 Hz 187 kA 690 V AC 50/60 Hz
[Ue] rated operational voltage	690 V AC 50/60 Hz IEC 60947-2
circuit breaker CT rating	1000 A
breaking capacity	85 kA Icu 525 V AC 50/60 Hz IEC 60947-2 85 kA Icu 690 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 220...240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 380...415 V AC 50/60 Hz IEC 60947-2
[Ics] rated service breaking capacity	85 kA 525 V AC 50/60 Hz IEC 60947-2 85 kA 690 V AC 50/60 Hz IEC 60947-2
protection type	Without protection
mechanical durability	12500 cycles without maintenance IEC 60947-2 25000 cycles with maintenance IEC 60947-2
electrical durability	10000 cycles 440 V AC 50/60 Hz without maintenance IEC 60947-2 10000 cycles 690 V AC 50/60 Hz without maintenance IEC 60947-2 AC-23A 10000 cycles 440 V AC 50/60 Hz without maintenance IEC 60947-2 AC-23A 10000 cycles 690 V AC 50/60 Hz without maintenance IEC 60947-2 AC-3 6000 cycles 440/690 V AC 50/60 Hz without maintenance IEC 60947-2
connection pitch	115 mm
[Icw] rated short-time withstand current	50 kA 3 s IEC 60947-2 85 kA 1 s IEC 60947-2
integral instant protection	171…209 kA
maximum breaking time	25 ms
maximum closing response time	70 ms
height	352 mm
width	537 mm
depth	297 mm

Environment
standards	IEC 60947-2
product certifications	ASTA ASEFA
pollution degree	4 IEC 60664-1
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
