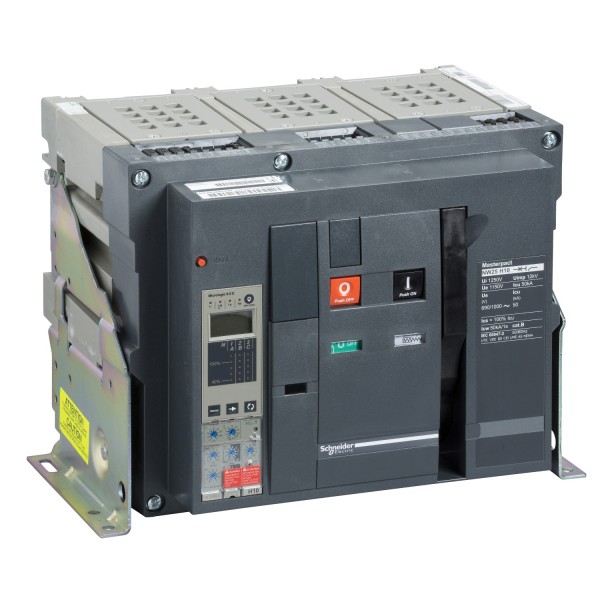

circuit breaker Masterpact NW25H10 - 2500 A - 3 poles

Details

Complementary
network frequency	50/60 Hz
control type	Push-button
mounting mode	Drawout
[In] rated current	2500 A 40 °C
[Ui] rated insulation voltage	1250 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage	12 kVIEC 60947-2
[Icm] rated short-circuit making capacity	105 kA 1150 V AC 50/60 Hz
[Ue] rated operational voltage	1150 V AC 50/60 Hz IEC 60947-2
breaking capacity	50 kA Icu 1150 V AC 50/60 Hz IEC 60947-2
[Ics] rated service breaking capacity	50 kA 1150 V AC 50/60 Hz IEC 60947-2
protection type	Without protection
mechanical durability	10000 cycles without maintenance IEC 60947-2 20000 cycles with maintenance IEC 60947-2
electrical durability	500 cycles 1150 V AC 50/60 Hz without maintenance IEC 60947-2
connection pitch	115 mm
[Icw] rated short-time withstand current	50 kA 1 s IEC 60947-2 50 kA 3 s IEC 60947-2
maximum breaking time	25 ms
maximum closing response time	70 ms
height	439 mm
width	441 mm
depth	394,5 mm

Environment
standards	IEC 60947-2
product certifications	ASTA ASEFA
pollution degree	3 IEC 60664-1
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
