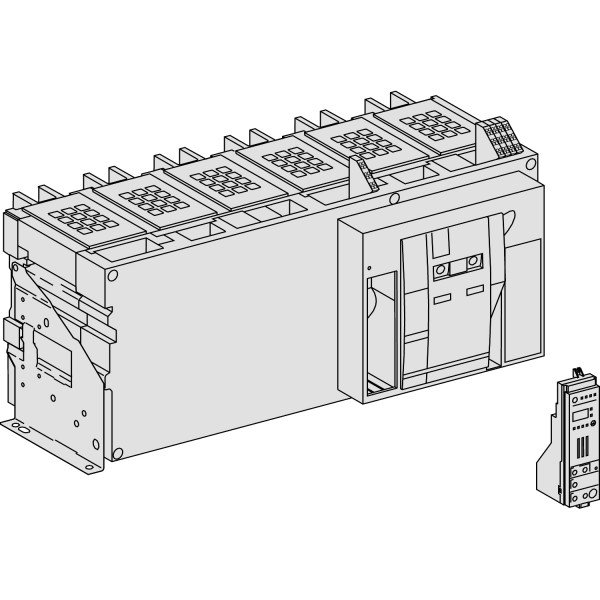

circuit breaker Masterpact NW40bH2 - 4000 A - 4 poles - fixed

Details

Complementary
network frequency	50/60 Hz
control type	Push-button
mounting mode	Fixed
[In] rated current	4000 A 40 °C
[Ui] rated insulation voltage	1000 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage	12 kVIEC 60947-2
[Icm] rated short-circuit making capacity	220 kA 690 V AC 50/60 Hz 286 kA 525 V AC 50/60 Hz
[Ue] rated operational voltage	690 V AC 50/60 Hz IEC 60947-2
circuit breaker CT rating	4000 A
breaking capacity	150 kA Icu 220...240 V AC 50/60 Hz IEC 60947-2 150 kA Icu 380...415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2 130 kA Icu 525 V AC 50/60 Hz IEC 60947-2 150 kA Icu 440 V AC 50/60 Hz IEC 60947-2
[Ics] rated service breaking capacity	100 kA 690 V AC 50/60 Hz IEC 60947-2 130 kA 525 V AC 50/60 Hz IEC 60947-2
protection type	Without protection
mechanical durability	10000 cycles with maintenance IEC 60947-2 5000 cycles without maintenance IEC 60947-2
electrical durability	AC-3 6000 cycles 440/690 V AC 50/60 Hz without maintenance IEC 60947-2 1500 cycles 440 V AC 50/60 Hz without maintenance IEC 60947-2 1500 cycles 690 V AC 50/60 Hz without maintenance IEC 60947-2 AC-23A 1500 cycles 440 V AC 50/60 Hz without maintenance IEC 60947-2 AC-23A 1500 cycles 690 V AC 50/60 Hz without maintenance IEC 60947-2
connection pitch	230 mm
[Icw] rated short-time withstand current	100 kA 1 s IEC 60947-2 100 kA 3 s IEC 60947-2
integral instant protection	243…297 kA
maximum breaking time	25 ms
maximum closing response time	80 ms
height	352 mm
width	997 mm
depth	297 mm

Environment
standards	IEC 60947-2
product certifications	ASEFA ASTA
pollution degree	4 IEC 60664-1
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
