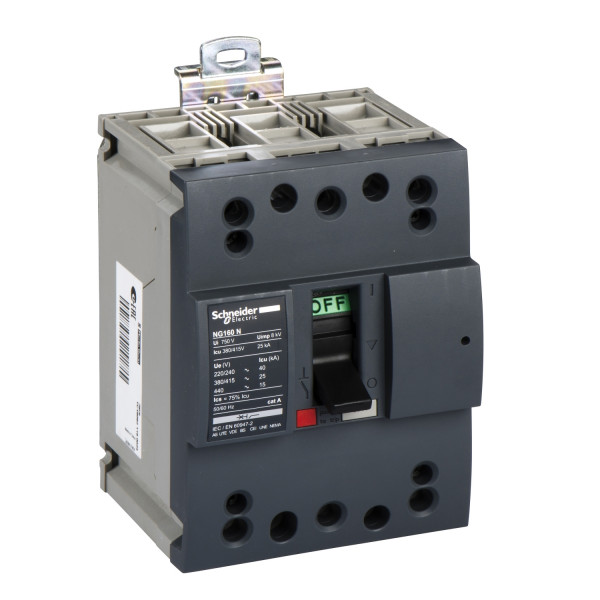

circuit breaker NG160N - TMD - 25 A - 3 poles 3d

Ülevaaded: 0

Tootekood: 28628

Quick Overview

Saadavus: Ei saa enam tellida

250,51 € (ilma KM-ta)

Details

Main
range of product
NG160
product or component type
Circuit breaker
device short name
NG160N
circuit breaker name
NG160N
device application
Distribution
poles description
3P
protected poles description
3t
network type
AC
network frequency
50/60 Hz
[In] rated current
25 A at 40 °C
breaking capacity code
N
breaking capacity
10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
16 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
40 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity
30 kA at 220/240 V AC 50/60 Hz
7.5 kA at 500 V AC 50/60 Hz
12 kA at 440 V AC 50/60 Hz
18.75 kA at 380/415 V AC 50/60 Hz
suitability for isolation
Yes
trip unit name
TM-D
trip unit technology
Thermal-magnetic
trip unit rating
25 A
protection type
Overload protection (thermal)
Short-circuit protection (magnetic)
Complementary
control type
Toggle
mounting mode
Clipped
mounting support
35 mm symmetrical DIN rail
upside connection
Front
downside connection
Front
connections - terminals
Tunnel type terminals
mechanical durability
10000 cycles
electrical durability
5000 cycles 440 V
local signalling
ON/OFF indication
magnetic tripping current
600 A
long time pick-up adjustment type Ir
Fixed
earth-leakage protection
Separate block
height
120 mm
width
90 mm
depth
82.5 mm
product compatibility
Single terminal
Environment
standards
IEC 60947-3
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
