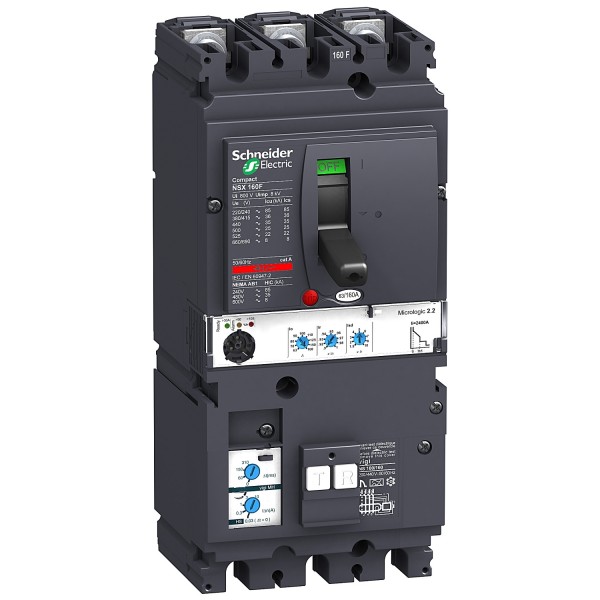

circuit breaker Vigicompact NSX 160B, 25 kA at 415 VAC, Micrologic 2.2 trip unit 160 A, add-on Vigi MH module, 3P 3d

Details

Main
range	Compact
product name	Compact NSX
product or component type	Circuit breaker with Vigi add-on
device short name	VigiCompact NSX160B
device application	Distribution
poles description	3P
protected poles description	3t
network type	AC
network frequency	50/60 Hz
[In] rated current	160 A 40 °C
[Ui] rated insulation voltage	800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ue] rated operational voltage	440 V AC 50/60 Hz
Breaking capacity code	B 25 kA 415 V AC
breaking capacity	15 kA Icu 500 V AC 50/60 Hz IEC 60947-2 20 kA Icu 440 V AC 50/60 Hz IEC 60947-2 25 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 40 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2
[Ics] rated service breaking capacity	20 kA 440 V AC 50/60 Hz IEC 60947-2 25 kA 380/415 V AC 50/60 Hz IEC 60947-2 40 kA 220/240 V AC 50/60 Hz IEC 60947-2 15 kA 500 V AC 50/60 Hz IEC 60947-2
suitability for isolation	Yes EN 60947-2 Yes IEC 60947-2
utilisation category	Category A
trip unit name	Micrologic 2.2
trip unit technology	Electronic
trip unit protection functions	LSoI
earth-leakage add-on module name	MH
pollution degree	3 IEC 60664-1

Complementary
control type	Toggle
mounting mode	Fixed
mounting support	Backplate
upside connection	Front
downside connection	Front
mechanical durability	40000 cycles
electrical durability	10000 cycles 440 V In/2 IEC 60947-2 15000 cycles 690 V In/2 IEC 60947-2 20000 cycles 440 V In IEC 60947-2 7500 cycles 690 V In IEC 60947-2
connection pitch	35 mm
local signalling	LED 90 % Ir LED ready LED 105 % Ir
protection type	Overload protection (long time) Short time short-circuit protection with fixed delay Instantaneous short-circuit protection
trip unit rating	160 A 40 °C
long time pick-up adjustment type Ir	Adjustable 9 settings
long time pick-up adjustment range	0.9...1 x Io
long time delay adjustment type	Fixed
[tr] long-time delay adjustment range	11 s 7.2 x Ir 16 s 6 x Ir 400 s 1.5 x Ir
thermal memory	20 minutes before and after tripping
short-time pick-up adjustment type Isd	Adjustable 9 settings
[Isd] short-time pick-up adjustment range	1.5...10 x Ir
short-time delay adjustment type	Fixed
instantaneous pick-up adjustment type Ii	Fixed
instantaneous pick-up adjustment range	2400 A
earth-leakage protection class	Class A
earth-leakage protection	With
residual earth-leakage sensitity adjustment type	Adjustable 5 settings
[IΔn] residual earth-leakage sensitive adjustment	0,03…10 A
residual earth-leakage time delay adjustment type	Adjustable 4 settings
height	236 mm
width	105 mm
depth	86 mm
net weight	2,2 kg
compatibility code	NSX160

Environment
overvoltage category	Class II
electrical shock protection class	Class II
standards	EN/IEC 60947
product certifications	CCC EAC Marine
IP degree of protection	IP40 IEC 60529
IK degree of protection	IK07 IEC 62262
ambient air temperature for operation	-35…70 °C
ambient air temperature for storage	-55…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
